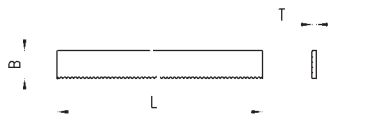

| Mã đặt hàng | LxBxT | Số răng/inch | Mã đặt hàng | LxBxT | Số răng/inch | Mã đặt hàng | LxBxT | Số răng/inch |
| mm | mm | mm | ||||||
| 324600.3005 | 1335x13x0.65 | 10 | 324600.0630 | 2825x27x0.9 | 5-8 | 324600.1480 | 3660x27x0.9 | 8 |
| 324600.3010 | 1335x13x0.65 | 14 | 324600.0640 | 2825x27x0.9 | 6-10 | 324600.1510 | 3660x27x0.9 | 2-3 |
| 324600.3020 | 1335x13x0.65 | 6-10 | 324600.0650 | 2825x27x0.9 | 8-12 | 324600.1520 | 3660x27x0.9 | 3-4 |
| 324600.3025 | 1335x13x0.65 | 8-12 | 324600.0700 | 2835x27x0.9 | 8 | 324600.1530 | 3660x27x0.9 | 4-6 |
| 324600.3030 | 1335x13x0.65 | 10-14 | 324600.0730 | 2835x27x0.9 | 2-3 | 324600.1540 | 3660x27x0.9 | 5-8 |
| 324600.0001 | 1470x13x0.65 | 14 | 324600.0740 | 2835x27x0.9 | 3-4 | 324600.1550 | 3660x27x0.9 | 6-10 |
| 324600.0002 | 1470x13x0.65 | 8-12 | 324600.0750 | 2835x27x0.9 | 4-6 | 324600.1560 | 3660x27x0.9 | 8-12 |
| 324600.0003 | 1470x13x0.65 | 10-14 | 324600.0760 | 2835x27x0.9 | 5-8 | 324600.1590 | 3700x27x0.9 | 4 |
| 324600.0004 | 2080x20x0.9 | 4 | 324600.0780 | 2835x27x0.9 | 8-12 | 324600.1600 | 3700x27x0.9 | 6 |
| 324600.0005 | 2080x20x0.9 | 4-6 | 324600.0880 | 2850x27x0.9 | 4-6 | 324600.1660 | 3700x27x0.9 | 4-6 |
| 324600.0006 | 2080x20x0.9 | 5-8 | 324600.0890 | 2850x27x0.9 | 5-8 | 324600.1680 | 3700x27x0.9 | 8-10 |
| 324600.0007 | 2080x20x0.9 | 6-10 | 324600.0940 | 2945x27x0.9 | 4 | 324600.1720 | 3800x27x0.9 | 4 |
| 324600.0008 | 2080x20x0.9 | 10-14 | 324600.1000 | 2945x27x0.9 | 3-4 | 324600.1780 | 3800x27x0.9 | 3-4 |
| 324600.0020 | 2450x27x0.9 | 3 | 324600.1010 | 2945x27x0.9 | 4-6 | 324600.1790 | 3800x27x0.9 | 4-6 |
| 324600.0030 | 2450x27x0.9 | 4 | 324600.1020 | 2945x27x0.9 | 5-8 | 324600.1800 | 3800x27x0.9 | 5-8 |
| 324600.0040 | 2450x27x0.9 | 6 | 324600.1030 | 2945x27x0.9 | 6-10 | 324600.1810 | 3800x27x0.9 | 6-10 |
| 324600.0050 | 2450x27x0.9 | 8 | 324600.1040 | 2945x27x0.9 | 8-12 | 324600.1820 | 3800x27x0.9 | 8-12 |
| 324600.0060 | 2450x27x0.9 | 10 | 324600.1060 | 3200x27x0.9 | 3 | 324600.1840 | 3900x27x0.9 | 3 |
| 324600.0070 | 2450x27x0.9 | 14 | 324600.1080 | 3200x27x0.9 | 6 | 324600.1850 | 3900x27x0.9 | 4 |
| 324600.0080 | 2450x27x0.9 | 2-3 | 324600.1090 | 3200x27x0.9 | 8 | 324600.1860 | 3900x27x0.9 | 6 |
| 324600.0090 | 2450x27x0.9 | 4-3 | 324600.1130 | 3200x27x0.9 | 3-4 | 324600.1870 | 3900x27x0.9 | 8 |
| 324600.0100 | 2450x27x0.9 | 4-6 | 324600.1140 | 3200x27x0.9 | 4-6 | 324600.1920 | 3900x27x0.9 | 4-6 |
| 324600.0110 | 2450x27x0.9 | 5-8 | 324600.1150 | 3200x27x0.9 | 5-8 | 324600.1940 | 3900x27x0.9 | 6-10 |
| 324600.0120 | 2450x27x0.9 | 6-10 | 324600.1160 | 3200x27x0.9 | 6-10 | 324600.1950 | 3900x27x0.9 | 8-12 |
| 324600.0130 | 2450x27x0.9 | 8-12 | 324600.1170 | 3200x27x0.9 | 8-12 | 324600.2050 | 4020x27x0.9 | 4-6 |
| 324600.0180 | 2500x27x0.9 | 8 | 324600.1260 | 3505x27x0.9 | 3-4 | 324600.2080 | 4020x27x0.9 | 8-12 |
| 324600.0190 | 2500x27x0.9 | 10 | 324600.1280 | 3505x27x0.9 | 5-8 | 324600.2120 | 4150x27x0.9 | 6 |
| 324600.0200 | 2500x27x0.9 | 14 | 324600.1320 | 3580x27x0.9 | 3 | 324600.2190 | 4150x27x0.9 | 5-8 |
| 324600.0230 | 2500x27x0.9 | 4-6 | 324600.1330 | 3580x27x0.9 | 4 | 324600.2290 | 4100x34x1.1 | 2-3 |
| 324600.0240 | 2500x27x0.9 | 5-8 | 324600.1340 | 3580x27x0.9 | 6 | 324600.2300 | 4100x34x1.1 | 3-4 |
| 324600.0250 | 2500x27x0.9 | 6-10 | 324600.1350 | 3580x27x0.9 | 8 | 324600.2310 | 4100x34x1.1 | 4-6 |
| 324600.0380 | 2520x27x0.9 | 6-10 | 324600.1380 | 3580x27x0.9 | 2-3 | 324600.2420 | 4115x34x1.1 | 2-3 |
| 324600.0420 | 2530x27x0.9 | 4 | 324600.1390 | 3580x27x0.9 | 3-4 | 324600.2430 | 4115x34x1.1 | 3-4 |
| 324600.0430 | 2530x27x0.9 | 6 | 324600.1400 | 3580x27x0.9 | 4-6 | 324600.2580 | 4570x34x1.1 | 5-8 |
| 324600.0450 | 2530x27x0.9 | 10 | 324600.1410 | 3580x27x0.9 | 5-8 | 324600.2590 | 4570x34x1.1 | 6-10 |
| 324600.0570 | 2825x27x0.9 | 8 | 324600.1420 | 3580x27x0.9 | 6-10 | 324600.2620 | 4800x34x1.1 | 3 |
| 324600.0580 | 2825x27x0.9 | 10 | 324600.1430 | 3580x27x0.9 | 8-12 | 324600.2770 | 4860x34x1.1 | 6 |
| 324600.0590 | 2825x27x0.9 | 14 | 324600.1450 | 3660x27x0.9 | 3 | 324600.2810 | 4860x34x1.1 | 2-3 |
| 324600.0610 | 2825x27x0.9 | 3-4 | 324600.1460 | 3660x27x0.9 | 4 | 324600.2820 | 4860x34x1.1 | 3-4 |
| 324600.0620 | 2825x27x0.9 | 4-6 | 324600.1470 | 3660x27x0.9 | 6 | 324600.2830 | 4860x34x1.1 | 4-6 |

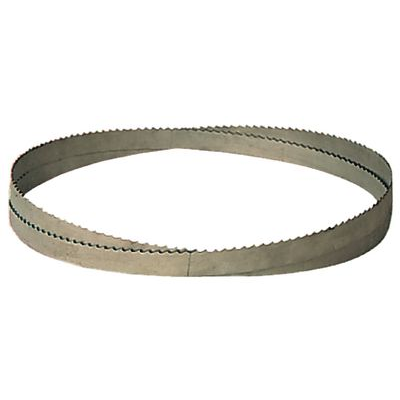

324600 Metal-cutting bandsaw blade WESA
High performance bi-metal bandsaw blade of HSS-M42, welded machine-ready. Cutting edges made of HSS-cobalt-molybdenum with 67-69 HRc. High tooth hardness and good tempering properties ensure longer useful life with higher cutting speeds and greater feed.
Application
A powerful, multi-purpose blade, especially suited for mass production and high cut rates. For
steels up to 1200 N/mm2.
Toothing
2 teeth per inch
For solid material of Ø 200-500 mm. The positive rake allows even work-hardening materials can
be cut well.
2 / 3 teeth per inch
For solid material of Ø 150-400 mm. Also for bundle and layer cuts with a cutting width of 150-
360 mm.
3 teeth per inch
For solid material of Ø 100-250 mm. Suited for various steel types and non-ferrous metals.
3 / 4 teeth per inch
For solid material and bundle cuts of Ø 80-200 mm. All-purpose bandsaw blade for production.
4 teeth per inch
For solid material of Ø 60-150 mm; cutting properties as for 3 teeth per inch.
4 / 6 teeth per inch
For solid material of Ø 50-100 mm, insensitive to tooth breakage. Different tooth pitches alternating at regular intervals allow larger cross-sectional areas to be sawed without changing the blade
5 / 8 teeth per inch
For solid material of Ø 30-80 mm, thick-walled pipes and profies, wall thickness 8-12 mm.
6 / 10 teeth per inch
For solid material of Ø 20-50 mm, pipes and profies, wall thickness 5-8 mm.
8 / 12 teeth per inch
For solid material of Ø 10-30 mm, thin-walled pipes and profies, wall thickness 2-5 mm.
