Lưỡi cưa đĩa thép gió DIXI -# 218520

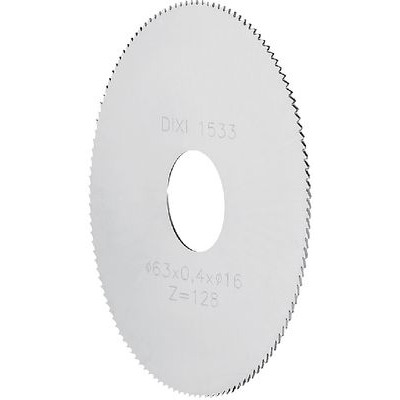

218520 Solid carbide circular saw DIXI. Form A, straight-back teeth, fine toothing, similar to DIN 1837A.
Application: Because of its reduced cutting space, this tool is suitable for slotting and cutting fine profiles and thin-walled pipes made of high-strength and abrasive materials.

Mã đặt hàng	Đường kính ngoài	Độ dày lưỡi	Đường kính trong	Số lưỡi răng ( Z )	Mã đặt hàng	Đường kính ngoài	Độ dày lưỡi	Đường kính trong	Số lưỡi răng ( Z )
	mm	mm	mm			mm	mm	mm
218520.0010	15	0.2	5	64	218520.0520	40	0.3	10	100
218520.0020	15	0.3	5	48	218520.0530	40	0.4	10	100
218520.0030	15	0.4	5	48	218520.0540	40	0.5	10	80
218520.0040	15	0.5	5	48	218520.0550	40	0.6	10	80
218520.0050	15	0.6	5	40	218520.0560	40	0.7	10	80
218520.0060	15	0.7	5	40	218520.0570	40	0.8	10	80
218520.0070	15	0.8	5	40	218520.0580	40	1	10	64
218520.0080	15	1	5	40	218520.0590	40	1.2	10	64
218520.0090	15	1.2	5	32	218520.0600	40	1.5	10	64
218520.0100	15	1.5	5	32	218520.0610	40	2	10	48
218520.0110	15	2	5	32	218520.0620	40	2.5	10	48
218520.0120	20	0.2	5	80	218520.0630	40	3	10	48
218520.0130	20	0.3	5	64	218520.0640	50	0.2	13	128
218520.0140	20	0.4	5	64	218520.0650	50	0.3	13	128
218520.0150	20	0.5	5	48	218520.0660	50	0.4	13	100
218520.0160	20	0.6	5	48	218520.0670	50	0.5	13	100
218520.0170	20	0.7	5	48	218520.0680	50	0.6	13	100
218520.0180	20	0.8	5	48	218520.0690	50	0.7	13	100
218520.0190	20	1	5	40	218520.0700	50	0.8	13	80
218520.0200	20	1.2	5	40	218520.0710	50	1	13	80
218520.0210	20	1.5	5	40	218520.0720	50	1.2	13	80
218520.0220	20	2	5	32	218520.0730	50	1.5	13	64
218520.0230	20	2.5	5	32	218520.0740	50	2	13	64
218520.0240	20	3	5	32	218520.0750	50	2.5	13	64
218520.0250	25	0.2	8	80	218520.0760	50	3	13	48
218520.0260	25	0.3	8	80	218520.0770	63	0.3	16	128
218520.0270	25	0.4	8	64	218520.0780	63	0.4	16	128
218520.0280	25	0.5	8	64	218520.0790	63	0.5	16	128
218520.0290	25	0.6	8	64	218520.0800	63	0.6	16	100
218520.0300	25	0.7	8	64	218520.0810	63	0.7	16	100
218520.0310	25	0.8	8	48	218520.0820	63	0.8	16	100
218520.0320	25	1	8	48	218520.0830	63	1	16	100
218520.0330	25	1.2	8	48	218520.0840	63	1.2	16	80
218520.0340	25	1.5	8	40	218520.0850	63	1.5	16	80
218520.0350	25	2	8	40	218520.0860	63	2	16	80
218520.0360	25	2.5	8	40	218520.0870	63	2.5	16	64
218520.0370	25	3	8	32	218520.0880	63	3	16	64
218520.0380	30	0.2	8	100	218520.0890	80	0.8	22	128
218520.0390	30	0.3	8	80	218520.0900	80	1	22	100
218520.0400	30	0.4	8	80	218520.0910	80	1.2	22	100
218520.0410	30	0.5	8	80	218520.0920	80	1.5	22	100
218520.0420	30	0.6	8	64	218520.0930	80	2	22	80
218520.0430	30	0.7	8	64	218520.0940	80	2.5	22	80
218520.0440	30	0.8	8	64	218520.0950	80	3	22	80
218520.0450	30	1	8	64	218520.0960	100	0.8	22	128
218520.0460	30	1.2	8	48	218520.0970	100	1	22	128
218520.0470	30	1.5	8	48	218520.0980	100	1.2	22	128
218520.0480	30	2	8	48	218520.0990	100	1.5	22	100
218520.0490	30	2.5	8	40	218520.1000	100	2	22	100
218520.0500	30	3	8	40	218520.1010	100	2.5	22	100
218520.0510	40	0.2	10	128	218520.1020	100	3	22	80
