| Mã đặt hàng | Đường kính ngoài | Độ dày lưỡi | Đường kính trong | Số lưỡi răng ( Z ) | Mã đặt hàng | Đường kính ngoài | Độ dày lưỡi | Đường kính trong | Số lưỡi răng ( Z ) |
| mm | mm | mm | mm | mm | mm | ||||
| 218410.0020 | 200 | 2 | 32 | 100 | 218410.0800 | 275 | 2.5 | 32 | 160 |
| 218410.0040 | 200 | 2 | 32 | 160 | 218410.0900 | 275 | 2.5 | 32 | 200 |
| 218410.0060 | 200 | 2 | 32 | 200 | 218410.1000 | 300 | 2.5 | 32 | 120 |
| 218410.0080 | 225 | 2 | 32 | 90 | 218410.1100 | 300 | 2.5 | 32 | 160 |
| 218410.0100 | 225 | 2 | 32 | 120 | 218410.1200 | 300 | 2.5 | 32 | 200 |
| 218410.0200 | 225 | 2 | 32 | 180 | 218410.1300 | 300 | 2.5 | 32 | 240 |
| 218410.0220 | 225 | 2 | 32 | 220 | 218410.1400 | 315 | 2.5 | 32 | 120 |
| 218410.0240 | 250 | 2 | 32 | 80 | 218410.1500 | 315 | 2.5 | 32 | 160 |
| 218410.0260 | 250 | 2 | 32 | 100 | 218410.1600 | 315 | 2.5 | 32 | 200 |
| 218410.0270 | 250 | 2 | 32 | 128 | 218410.1700 | 315 | 2.5 | 32 | 240 |
| 218410.0300 | 250 | 2 | 32 | 160 | 218410.1800 | 350 | 2.5 | 32 | 120 |
| 218410.0400 | 250 | 2 | 32 | 200 | 218410.1900 | 350 | 2.5 | 32 | 160 |
| 218410.0500 | 250 | 2 | 32 | 240 | 218410.2000 | 350 | 2.5 | 32 | 180 |
| 218410.0600 | 275 | 2.5 | 32 | 120 | 218410.2100 | 400 | 3.5 | 50 | 120 |
| 218410.0700 | 275 | 2.5 | 32 | 140 | 218410.2200 | 400 | 3.5 | 50 | 160 |

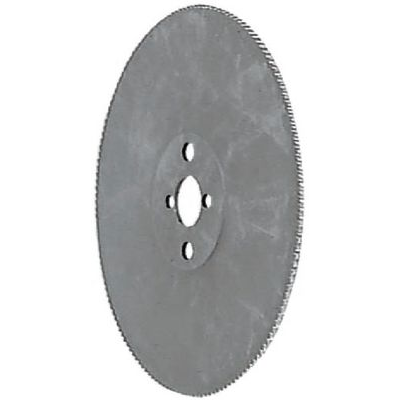

Application: Because of its large cutting space, this tool is suitable for cutting thick-walled pipes, profiles and solid materials. The high-performance C toothing (with curved back and gullet) reduces the cutting force and thus allows a markedly increased cutting performance.
Hole:
32 mm
• Driver holes: 2xØ8 spacing 45mm / 2xØ11 spacing 63 mm.
• For chop saws: Adige, Bewo, Bimax, Demurger, IBP (Brown), Rhobi, Sinico.
50 mm
• Driver holes: 4xØ15 spacing 80 mm / 4xØ14 spacing 85 mm.
• For chop saws: Kaltenbach, Kasto, Wagner etc.
Note: All types of toothing available for extra charge.
