| Mã đặt hàng | Đường kính ngoài | Độ dày lưỡi | Đường kính trong | Số lưỡi răng ( Z ) | Mã đặt hàng | Đường kính ngoài | Độ dày lưỡi | Đường kính trong | Số lưỡi răng ( Z ) |
| mm | mm | mm | mm | mm | mm | ||||
| 218360.0100 | 50 | 1 | 13 | 40 | 218360.2600 | 100 | 2.5 | 22 | 48 |
| 218360.0200 | 50 | 1.2 | 13 | 40 | 218360.2700 | 100 | 3 | 22 | 40 |
| 218360.0300 | 50 | 1.6 | 13 | 32 | 218360.2800 | 100 | 4 | 22 | 40 |
| 218360.0400 | 50 | 2 | 13 | 32 | 218360.2900 | 100 | 5 | 22 | 40 |
| 218360.0500 | 50 | 2.5 | 13 | 32 | 218360.3000 | 125 | 1 | 22 | 80 |
| 218360.0600 | 50 | 3 | 13 | 24 | 218360.3100 | 125 | 1.2 | 22 | 64 |
| 218360.0700 | 50 | 4 | 13 | 24 | 218360.3200 | 125 | 1.6 | 22 | 64 |
| 218360.0800 | 63 | 1 | 16 | 48 | 218360.3300 | 125 | 2 | 22 | 64 |
| 218360.0900 | 63 | 1.2 | 16 | 40 | 218360.3400 | 125 | 2.5 | 22 | 48 |
| 218360.1000 | 63 | 1.6 | 16 | 40 | 218360.3500 | 125 | 3 | 22 | 48 |
| 218360.1100 | 63 | 2 | 16 | 40 | 218360.3600 | 125 | 4 | 22 | 48 |
| 218360.1200 | 63 | 2.5 | 16 | 32 | 218360.3700 | 125 | 5 | 22 | 40 |
| 218360.1300 | 63 | 3 | 16 | 32 | 218360.3800 | 160 | 1 | 32 | 80 |
| 218360.1400 | 63 | 4 | 16 | 32 | 218360.3900 | 160 | 1.2 | 32 | 80 |
| 218360.1500 | 80 | 1 | 22 | 48 | 218360.4000 | 160 | 1.6 | 32 | 80 |
| 218360.1600 | 80 | 1.2 | 22 | 48 | 218360.4100 | 160 | 2 | 32 | 64 |
| 218360.1700 | 80 | 1.6 | 22 | 48 | 218360.4200 | 160 | 2.5 | 32 | 64 |
| 218360.1800 | 80 | 2 | 22 | 40 | 218360.4300 | 160 | 3 | 32 | 64 |
| 218360.1900 | 80 | 2.5 | 22 | 40 | 218360.4700 | 200 | 1.2 | 32 | 100 |
| 218360.2000 | 80 | 3 | 22 | 40 | 218360.4900 | 200 | 2 | 32 | 80 |
| 218360.2100 | 80 | 4 | 22 | 32 | 218360.5000 | 200 | 2.5 | 32 | 80 |
| 218360.2200 | 100 | 1 | 22 | 64 | 218360.5400 | 250 | 2 | 32 | 100 |
| 218360.2300 | 100 | 1.2 | 22 | 64 | 218360.5500 | 250 | 2.5 | 32 | 80 |
| 218360.2400 | 100 | 1.6 | 22 | 48 | 218360.5600 | 250 | 3 | 32 | 80 |
| 218360.2500 | 100 | 2 | 22 | 48 |

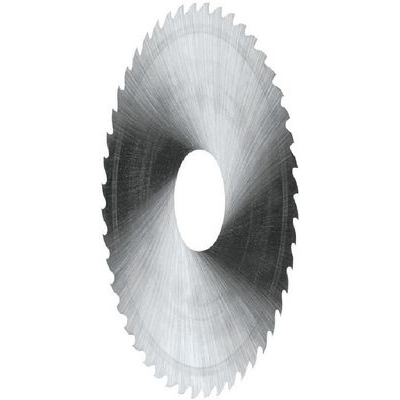

Application: Because of its large cutting space, this tool is suitable for cutting thick-walled pipes, profiles and solid materials. The high-performance C toothing (with curved back and gullet) reduces the cutting force and thus allows a markedly increased cutting performance.
