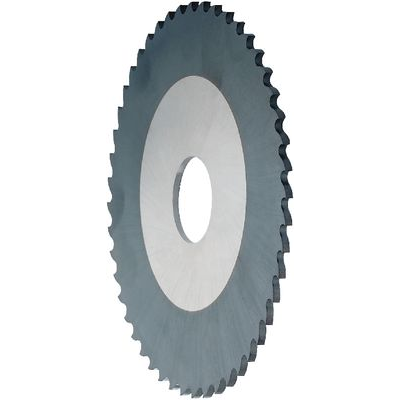

Lưỡi cưa đĩa thép gió BRW -# 218340

218340 Metal-cutting circular saw. (wie 218320, but with TiAlN coating.) Type B, TiAlN, HSS, coarse, curved teeth, polished surface, hollow-ground, DIN 1838B.

Mã đặt hàng	Đường kính ngoài	Độ dày lưỡi	Đường kính trong	Số lưỡi răng ( Z )	Mã đặt hàng	Đường kính ngoài	Độ dày lưỡi	Đường kính trong	Số lưỡi răng ( Z )
	mm	mm	mm			mm	mm	mm
218340.0100	32	0.3	8	40	218340.4400	63	4	16	32
218340.0200	32	0.4	8	40	218340.4500	80	0.6	22	64
218340.0300	32	0.5	8	40	218340.4600	80	0.8	22	64
218340.0400	32	0.6	8	32	218340.4700	80	1	22	48
218340.0500	32	0.8	8	32	218340.4800	80	1.2	22	48
218340.0600	32	1	8	32	218340.4900	80	1.5	22	48
218340.0700	32	1.5	8	24	218340.5000	80	1.6	22	48
218340.0800	32	2	8	24	218340.5100	80	2	22	40
218340.0900	32	2.5	8	20	218340.5200	80	2.5	22	40
218340.1000	32	3	8	20	218340.5300	80	3	22	40
218340.1100	40	0.3	10	48	218340.5400	80	4	22	32
218340.1200	40	0.4	10	48	218340.5500	100	0.8	22	64
218340.1300	40	0.5	10	40	218340.5600	100	1	22	64
218340.1400	40	0.6	10	40	218340.5700	100	1.2	22	64
218340.1500	40	0.8	10	40	218340.5800	100	1.5	22	64
218340.1600	40	1	10	32	218340.5900	100	1.6	22	48
218340.1700	40	1.2	10	32	218340.6000	100	2	22	48
218340.1800	40	1.5	10	32	218340.6100	100	2.5	22	48
218340.1900	40	2	10	24	218340.6200	100	3	22	40
218340.2000	40	2.5	10	24	218340.6300	100	4	22	40
218340.2100	40	3	10	24	218340.6400	125	1	22	80
218340.2200	40	4	10	20	218340.6500	125	1.2	22	64
218340.2300	50	0.3	13	64	218340.6600	125	1.5	22	64
218340.2400	50	0.4	13	48	218340.6700	125	2	22	64
218340.2500	50	0.5	13	48	218340.6800	125	2.5	22	48
218340.2600	50	0.6	13	48	218340.6900	125	3	22	48
218340.2700	50	0.8	13	40	218340.7000	125	4	22	48
218340.2800	50	1	13	40	218340.7100	160	1	32	80
218340.2900	50	1.2	13	40	218340.7200	160	1.5	32	80
218340.3000	50	1.5	13	40	218340.7300	160	2	32	64
218340.3100	50	2	13	32	218340.7400	160	2.5	32	64
218340.3200	50	2.5	13	32	218340.7500	160	3	32	64
218340.3300	50	3	13	24	218340.7600	160	4	32	48
218340.3400	50	4	13	24	218340.7700	200	1.5	32	80
218340.3500	63	0.5	16	64	218340.7800	200	1.6	32	80
218340.3600	63	0.6	16	48	218340.7900	200	2	32	80
218340.3700	63	0.8	16	48	218340.8000	200	2.5	32	80
218340.3800	63	1	16	48	218340.8100	200	3	32	64
218340.3900	63	1.2	16	40	218340.8200	250	1.6	32	100
218340.4000	63	1.6	16	40	218340.8300	250	2	32	100
218340.4100	63	2	16	40	218340.8400	250	2.5	32	80
218340.4200	63	2.5	16	32	218340.8500	250	3	32	80
218340.4300	63	3	16	32	218340.8600	250	4	32	80
