Lưỡi cưa đĩa thép gió BRW -# 218320

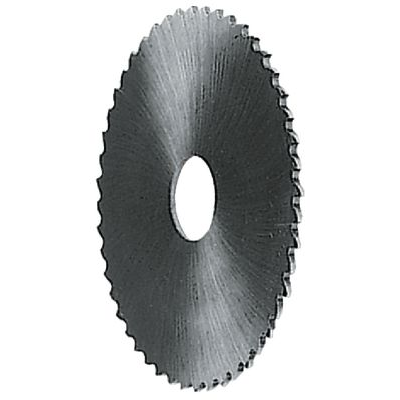

218320 Metal-cutting circular saw. Type B, HSS, coarse, curved teeth, polished surface, hollow-ground, DIN 1838B.
Application: With considerably more chip space and better chip formation, this type can be used for stronger materials and deeper cuts. Also well suited to slot cutting.

Mã đặt hàng	Đường kính ngoài	Độ dày lưỡi	Đường kính trong	Số lưỡi răng ( Z )	Mã đặt hàng	Đường kính ngoài	Độ dày lưỡi	Đường kính trong	Số lưỡi răng ( Z )
	mm	mm	mm			mm	mm	mm
218320.0100	32	0.3	8	40	218320.4900	80	1	22	48
218320.0200	32	0.4	8	40	218320.4950	80	1	22	48
218320.0300	32	0.5	8	40	218320.5000	80	1.2	22	48
218320.0400	32	0.6	8	32	218320.5100	80	1.5	22	48
218320.0500	32	0.8	8	32	218320.5200	80	1.6	22	48
218320.0600	32	1	8	32	218320.5300	80	2	22	40
218320.0700	32	1.5	8	24	218320.5400	80	2.5	22	40
218320.0800	32	2	8	24	218320.5500	80	3	22	40
218320.0900	32	2.5	8	20	218320.5600	80	4	22	32
218320.1000	32	3	8	20	218320.5700	80	5	22	32
218320.1100	40	0.3	10	48	218320.5800	100	0.8	22	64
218320.1200	40	0.4	10	48	218320.5900	100	1	22	64
218320.1300	40	0.5	10	40	218320.6000	100	1.2	22	64
218320.1400	40	0.6	10	40	218320.6100	100	1.5	22	64
218320.1500	40	0.8	10	40	218320.6200	100	1.6	22	48
218320.1600	40	1	10	32	218320.6300	100	2	22	48
218320.1700	40	1.2	10	32	218320.6400	100	2.5	22	48
218320.1800	40	1.5	10	32	218320.6500	100	3	22	40
218320.1900	40	2	10	24	218320.6600	100	4	22	40
218320.2000	40	2.5	10	24	218320.6700	100	5	22	40
218320.2100	40	3	10	24	218320.6800	100	6	22	32
218320.2200	40	4	10	20	218320.6900	125	1	22	80
218320.2300	50	0.3	13	64	218320.7000	125	1.2	22	64
218320.2400	50	0.4	13	48	218320.7100	125	1.5	22	64
218320.2500	50	0.5	13	48	218320.7200	125	1.6	22	64
218320.2600	50	0.6	13	48	218320.7300	125	2	22	64
218320.2700	50	0.8	13	40	218320.7400	125	2.5	22	48
218320.2800	50	1	13	40	218320.7500	125	3	22	48
218320.2900	50	1.2	13	40	218320.7600	125	4	22	48
218320.3000	50	1.5	13	40	218320.7700	125	5	22	40
218320.3100	50	2	13	32	218320.7800	160	1	32	80
218320.3200	50	2.5	13	32	218320.7900	160	1.5	32	80
218320.3300	50	3	13	24	218320.8000	160	2	32	64
218320.3400	50	4	13	24	218320.8100	160	2.5	32	64
218320.3500	63	0.5	16	64	218320.8200	160	3	32	64
218320.3600	63	0.6	16	48	218320.8300	160	4	32	48
218320.3700	63	0.8	16	48	218320.8400	160	5	32	48
218320.3800	63	1	16	48	218320.8500	160	6	32	48
218320.3900	63	1.2	16	40	218320.8600	200	1.5	32	80
218320.4000	63	1.6	16	40	218320.8700	200	1.6	32	80
218320.4100	63	2	16	40	218320.8800	200	2	32	80
218320.4200	63	2.5	16	32	218320.8900	200	2.5	32	80
218320.4300	63	3	16	32	218320.9000	200	3	32	64
218320.4400	63	4	16	32	218320.9100	250	1.6	32	100
218320.4500	63	5	16	24	218320.9200	250	2	32	100
218320.4600	63	6	16	24	218320.9300	250	2.5	32	80
218320.4700	80	0.6	22	64	218320.9400	250	3	32	80
218320.4800	80	0.8	22	64	218320.9500	250	4	32	80
