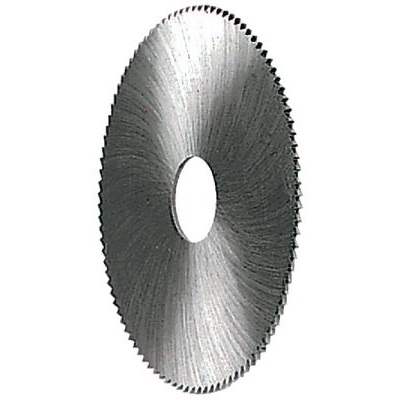

Lưỡi cưa đĩa thép gió BRW -# 218300

218300 Metal-cutting circular saw. Type A, HSS, fine teeth with straight back and zero rake, polished surface, hollow-ground, DIN1837A.
Application: For thin-walled workpieces and low cutting depths in brittle materials with short chips.

Mã đặt hàng	Đường kính ngoài	Độ dày lưỡi	Đường kính trong	Số lưỡi răng ( Z )	Mã đặt hàng	Đường kính ngoài	Độ dày lưỡi	Đường kính trong	Số lưỡi răng ( Z )
	mm	mm	mm			mm	mm	mm
218300.0010	20	0.2	5	80	218300.0620	63	1.6	16	80
218300.0020	20	0.3	5	64	218300.0630	63	2	16	80
218300.0030	20	0.4	5	64	218300.0640	63	2.5	16	64
218300.0040	20	0.5	5	48	218300.0650	63	3	16	64
218300.0050	20	0.6	5	48	218300.0660	63	4	16	64
218300.0060	20	0.8	5	48	218300.0670	63	5	16	48
218300.0070	20	1	5	40	218300.0680	80	0.3	22	160
218300.0080	20	1.2	5	40	218300.0690	80	0.4	22	160
218300.0090	20	1.5	5	40	218300.0700	80	0.5	22	128
218300.0100	20	1.6	5	40	218300.0710	80	0.6	22	128
218300.0110	20	2	5	32	218300.0720	80	0.8	22	128
218300.0120	32	0.2	8	100	218300.0730	80	1	22	100
218300.0130	32	0.3	8	80	218300.0740	80	1.2	22	100
218300.0140	32	0.4	8	80	218300.0750	80	1.5	22	100
218300.0150	32	0.5	8	80	218300.0760	80	1.6	22	100
218300.0160	32	0.6	8	64	218300.0770	80	2	22	80
218300.0170	32	0.8	8	64	218300.0780	80	2.5	22	80
218300.0180	32	1	8	64	218300.0790	80	3	22	80
218300.0190	32	1.2	8	48	218300.0800	80	4	22	64
218300.0200	32	1.5	8	48	218300.0810	80	5	22	64
218300.0210	32	1.6	8	48	218300.0820	100	0.5	22	160
218300.0220	32	2	8	48	218300.0830	100	0.6	22	160
218300.0230	32	2.5	8	40	218300.0840	100	0.8	22	128
218300.0240	32	3	8	40	218300.0850	100	1	22	128
218300.0250	40	0.2	10	128	218300.0860	100	1.2	22	128
218300.0260	40	0.3	10	100	218300.0870	100	1.5	22	100
218300.0270	40	0.4	10	100	218300.0880	100	1.6	22	100
218300.0280	40	0.5	10	80	218300.0890	100	2	22	100
218300.0290	40	0.6	10	80	218300.0900	100	2.5	22	100
218300.0300	40	0.8	10	80	218300.0910	100	3	22	80
218300.0310	40	1	10	64	218300.0920	100	4	22	80
218300.0320	40	1.2	10	64	218300.0930	100	5	22	80
218300.0330	40	1.5	10	64	218300.0940	125	0.6	22	160
218300.0340	40	2	10	48	218300.0950	125	0.8	22	160
218300.0350	40	2.5	10	48	218300.0960	125	1	22	160
218300.0360	40	3	10	48	218300.0970	125	1.2	22	128
218300.0370	40	4	10	40	218300.0980	125	1.5	22	128
218300.0380	40	5	10	40	218300.0990	125	1.6	22	128
218300.0390	50	0.2	13	128	218300.1000	125	2	22	128
218300.0400	50	0.3	13	128	218300.1010	125	2.5	22	100
218300.0410	50	0.4	13	100	218300.1020	125	3	22	100
218300.0420	50	0.5	13	100	218300.1030	125	4	22	100
218300.0430	50	0.6	13	100	218300.1040	160	1	32	160
218300.0440	50	0.8	13	80	218300.1050	160	1.2	32	160
218300.0450	50	1	13	80	218300.1060	160	1.5	32	160
218300.0460	50	1.2	13	80	218300.1070	160	1.6	32	160
218300.0470	50	1.5	13	64	218300.1080	160	2	32	128
218300.0480	50	1.6	13	64	218300.1090	160	2.5	32	128
218300.0490	50	2	13	64	218300.1100	160	3	32	128
218300.0500	50	2.5	13	64	218300.1110	200	1	32	200
218300.0510	50	3	13	48	218300.1120	200	1.2	32	200
218300.0520	50	4	13	48	218300.1130	200	1.5	32	160
218300.0530	50	5	13	48	218300.1140	200	1.6	32	160
218300.0540	63	0.3	16	128	218300.1150	200	2	32	160
218300.0550	63	0.4	16	128	218300.1160	200	2.5	32	160
218300.0560	63	0.5	16	128	218300.1170	200	3	32	128
218300.0570	63	0.6	16	100	218300.1180	250	1.6	32	200
218300.0580	63	0.8	16	100	218300.1190	250	2	32	200
218300.0590	63	1	16	100	218300.1200	250	2.5	32	160
218300.0600	63	1.2	16	80	218300.1210	250	3	32	160
218300.0610	63	1.5	16	80
