Features
- Extremely thick material is welded, and the rotating part is hardened.
- The bearing section uses radial ball bearings, which ensures smooth rotation of the wheels.
- Casters specially designed for heavy loads.
Specifications in detail
Plate type,
free-moving type,
allowable load (daN): 500
, allowable load (kgf): 510,
wheel diameter D (mm): 150,
wheel width (mm): 50,
mounting height H (mm): 187
, mounting seat A (mm): 114,
mounting seat B (mm): 102
, mounting pitch X (mm): 80-88,
mounting pitch Y (mm): 76-64,
mounting hole diameter P (mm): 13
, type: free-moving type

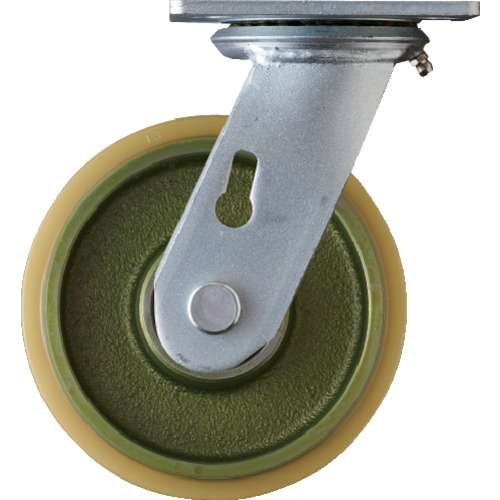

HAMMER CASTER 500BPS-CU150
