Features
- It is the most widely produced and is used in a variety of places.
- RoHS compliant.
Purpose
- This is an all-purpose lightweight type that can be used both indoors and outdoors.
Specifications in detail
Plate type
Wheel shape: Nylon wheel Rubber wrapped wheel
Allowable load (daN): 50
Allowable load (kgf): 51
Wheel diameter D (mm): 75
Wheel width (mm): 27
Mounting height H (mm): 90
Mounting seat A (mm): 70
Mounting seat B (mm): 58
Mounting pitch X (mm): 55
Mounting pitch Y (mm): 42
Mounting hole diameter P (mm): 8.8
Type: Swivel (with stopper)
Allowable load (N): 500

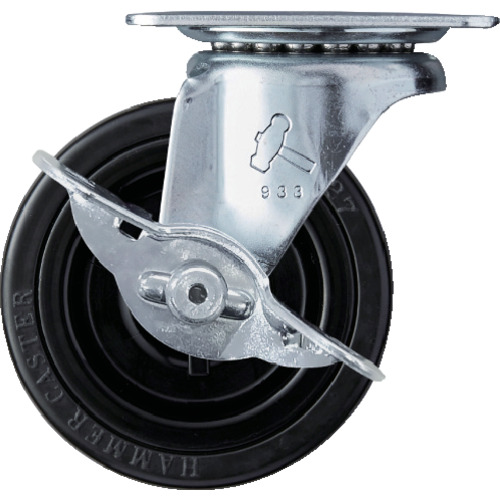

HAMMER CASTER 415G-R75
