- By installing it inline, it keeps the oil clean in the hydraulic circuit and prevents foreign matter from getting into hydraulic equipment.
- The element can be easily replaced as it is pulled out from above.
- The piping method is screw-in type (flange type is optional).
- The flow direction can be easily changed by rotating the top cover 180°.
- For general hydraulic oil.
Specifications in detail
Maximum operating pressure: 3.5MPa
Filtration accuracy: 10 microns
Visual indicator, relief valve
Caliber: Rc1 1/4
Total length (mm): 387
Overall width (mm): 150
Standard flow rate (L/min): 155

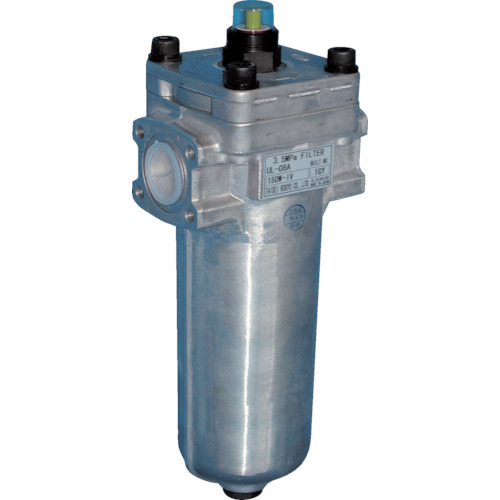

DAISEI UL-10A-10U-IV
