Features
- It won the Good Design Award in 2016 and the iF Design Award in 2018.
- Optimal needle design has achieved linear flow characteristics that are proportional to the needle rotation speed.
- There is little variation in flow rate, and the cylinder speed can be easily set and changed. When replacing the cylinder, you can reset it by simply turning the dial to the same number.
- This significantly reduces the amount of work required and prevents adjustment errors.
- The needle is fixed using a push-lock system, which is simple to operate and makes adjustments easy for anyone.
- Eliminates needle movement when locking, ensuring secure locking.
- The flow rate can be scaled and the cylinder speed can be quantified.
Applications
- For when you want to easily adjust the speed of an air cylinder.
Specifications in detail
Control method: Meter-out
Connection type: Screw-in
Ambient temperature: 0 to 60°C
Operating pressure: 0.05 to 1.0
MPa Needle control range: 1 to 10 turns
Connection port size: R3/8
Compatible tube outer diameter D (mm): 6
Compatible tube outer diameter (mm): 6
Operating pressure (MPa): 0.05 to 1.0
Fluid used: Compressed air
Fluid temperature (°C): 5 to 60 (but not frozen)
Effective cross-sectional area ((MM2)): 6.0
Ambient temperature (°C): 0 to 60
Effective cross-sectional area ((MM2)): 6.00

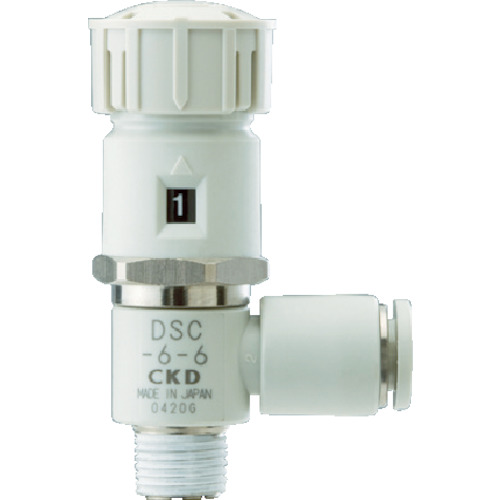

CKD DSC-10-6
