Features
- Optimal needle design realizes linear flow characteristics proportional to the needle rotation speed, minimizing flow rate variation and allowing the cylinder speed to be easily set and changed.
- The needle is fixed using a push-lock system, which is simple to operate and makes adjustments easy for anyone.
- The flow rate can be scaled and the cylinder speed can be quantified.
- The dial display in 0.5 increments allows for more precise quantification.
- It won the Good Design Award in 2016 and the iF Design Award in 2018.
Applications
- For when you want to easily adjust the speed of an air cylinder.
Specifications in detail
Fluid used: Compressed airFluid
temperature: 5 to 60°C, Ambient temperature: 0 to 60° COperating
pressure: 0.05 to 1.0
MPaControl method: Meter-
outConnection type: Screw-
inFlow type: Standard flow
needleControl range: 1 to 7 turnsConnection
port size: M5Compatible
tube outer diameter D (mm): 4Compatible
tube outer diameter (mm): 4Operating
pressure (MPa): 0.05 to 1.0Operating
fluid: Compressed airFluid
temperature (°C): 5 to 60 (but not frozen)
Effective cross-sectional area ((MM2)): 1.5Control
method: Meter-outFlow
rate (L/min): 100Control
flow rate (L/min): 60Control
flow effective cross-sectional area (〔〔MM2〕〕): 0.9

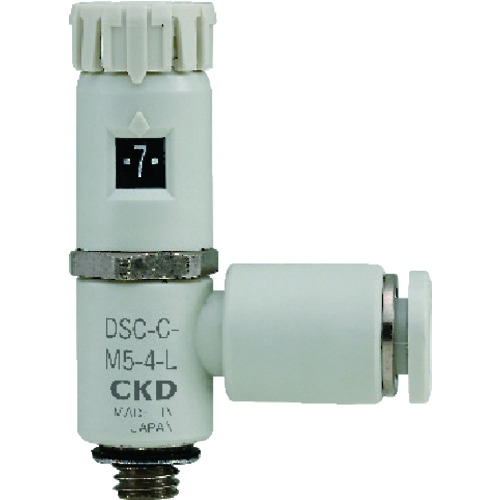

CKD DSC-C-M5-4
