Features
- This is a general fluid solenoid valve (for air).
- We have a wide range of models available in terms of fluids, pressures, and calibers.
Specifications in detail
Operating pressure: 0 to 0.7MPa
Effective cross-sectional area (mm2): 100
Connection size: Rc1/2
Operation method: Pilot kick type
Power supply (V): AC100
Number of ports: 2
Operating pressure (MPa): 0 to 0.7
Fluid used: Air
Fluid temperature (℃): 5 to 60
Sonic conductance (C [dm3/S・bar)]): 20
Orifice (mm2): 15

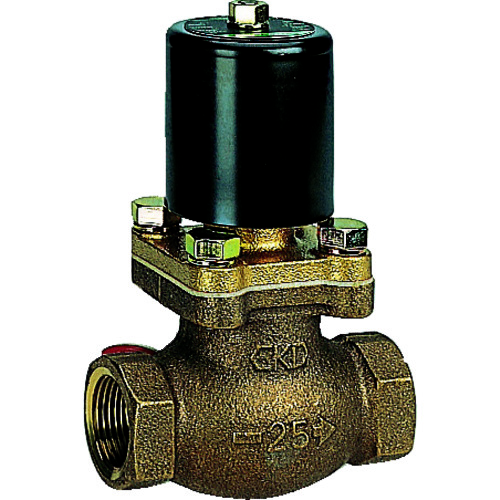

CKD PKA-04-27-AC100V
