Features
- This space-saving type integrates a filter, regulator, and lubricator.
- The pressure gauge is embedded in the body, giving it a sleek design while ensuring safety.
- If the damage is partial, it is possible to replace only the damaged part.
- The element used has a unique chemical fiber structure that is rough on the surface and gets finer toward the inside. This significantly reduces clogging and increases the element's lifespan.
Specifications in detail
Drain discharge method: Manual
Oil used: Turbine oil type 1 (equivalent to ISO VG#32)
Pressure gauge, bracket included
Filtration accuracy (μm): 5
Operating pressure (MPa): 1
Connection port size: Rc3/8
Oil storage capacity ((cm3)): 85
Overall length (mm): 203
Overall width (mm): 189
Set pressure (MPa): 0.05 to 0.85
Processing air flow rate ((m3)/min): 1.75
Fluid used: Air
Fluid temperature (℃): 5 to 60

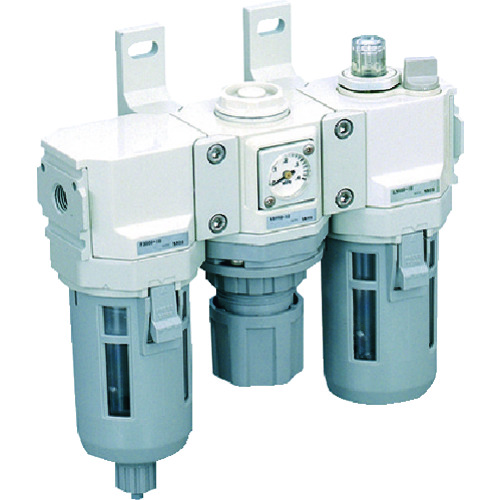

CKD C3000-10-W
