Thông tin sản phẩm
Operating temperature range: -20 to 100°C
With residual pressure removal function
Nominal diameter: 7.6mm
Air flow rate: 2250L/min (measured value when inlet pressure is 0.6MPa and pressure loss is 0.05MPa)
Pressure resistance (MPa): 1.6
Mating side mounting size: Rc1/4
Fluid used: Air
Maximum operating pressure (MPa): 1.6
Operating pressure: 1.6MPa
Minimum burst pressure (Mpa): 14.0

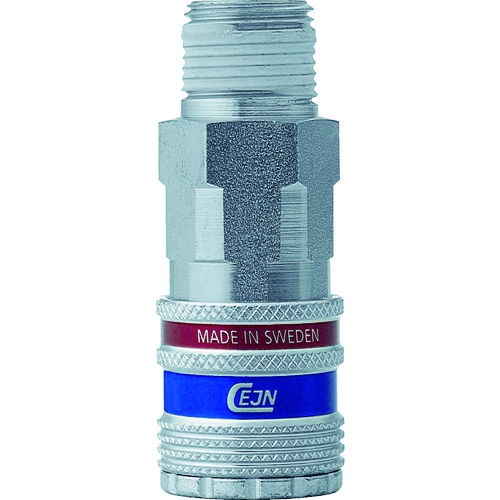

CEJN 10-320-2152
