Features
- There is almost no dripping when the coupling is separated, minimizing leakage into the surrounding environment.
- This helps to minimize air getting into the flow path when connecting the coupling.
- An optional identification function is available to prevent incorrect connections.
Purpose
- For cooling and temperature control applications.
Specifications in detail
With valve
Maximum operating pressure (MPa): 8.0
Counterpart mounting size: G1/2 male thread
Operating temperature range (℃): -20 to 150 (Maximum operating temperature of identification band is 125℃)
Fluid used: Water, hot water
Width (mm): 29
Depth (mm): 29
Height (mm): 56.5
Connection thread: G1/2 female thread
Minimum burst pressure (MPa): 8.0

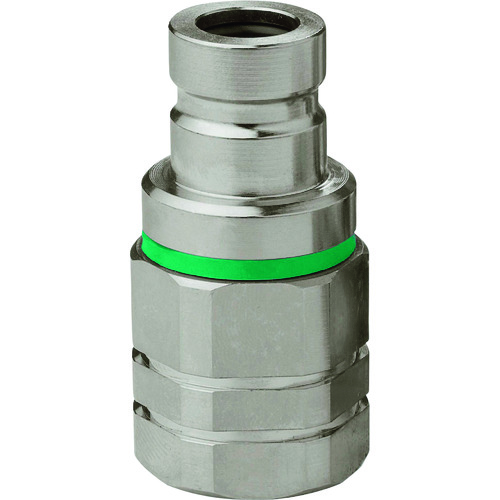

CEJN 10-567-6220
