| Mã đặt hàng | Mã gốc. | Kết nối ren | Lưu lượng | Gradeoffitration | Đường kính áp kế Ø |
| l/min | mm | ||||
| 579678.0100 | 199031402 | G1/4“ | 1300 | 25 | 40 |
| 579678.0200 | 199035404 | G3/8“ | 3000 | 25 | 50 |
| 579678.0300 | 199035405 | G1/2“ | 3000 | 25 | 50 |

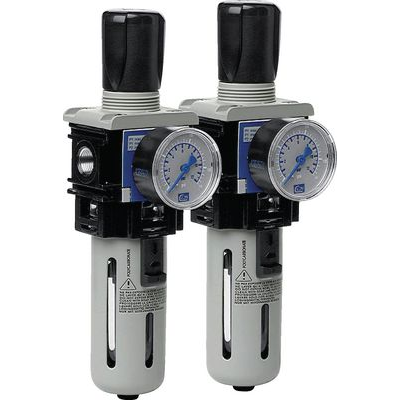

579678 Service unit CEJN
Filter/pressure regulator/pressure gauge. Filter fieness 25 μm, outstanding fitering of water and contamination, high flw capacity, excellent hysteresis (0.2 - 0.3 bar). Secure, precise pressure adjustment using pull-turn-push knob, semi-automatic condensate draining. Compact, modular construction, housing in painted die-cast zinc, container made of polycarbonate, UV resistant, easily readable level sight glass, protective container cage made of metal, with bayonet closure and container lock.
| Mã đặt hàng | Mã gốc. | Kết nối ren | Lưu lượng | Gradeoffitration | Đường kính áp kế Ø |
| l/min | mm | ||||
| 579678.0100 | 199031402 | G1/4“ | 1300 | 25 | 40 |
| 579678.0200 | 199035404 | G3/8“ | 3000 | 25 | 50 |
| 579678.0300 | 199035405 | G1/2“ | 3000 | 25 | 50 |
579678 Service unit CEJN
Filter/pressure regulator/pressure gauge. Filter fieness 25 μm, outstanding fitering of water and contamination, high flw capacity, excellent hysteresis (0.2 - 0.3 bar). Secure, precise pressure adjustment using pull-turn-push knob, semi-automatic condensate draining. Compact, modular construction, housing in painted die-cast zinc, container made of polycarbonate, UV resistant, easily readable level sight glass, protective container cage made of metal, with bayonet closure and container lock.
