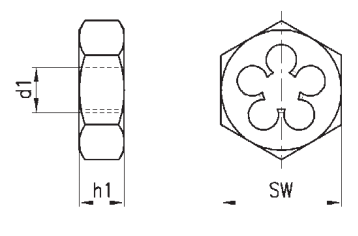

| Mã đặt hàng | d1 | P | h1 | SW | Mã đặt hàng | d1 | P | h1 | SW |
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 265340.0100 | M3 | 0.5 | 5 | 18 | 265340.0800 | M14 | 2 | 14 | 36 |
| 265340.0200 | M4 | 0.7 | 5 | 18 | 265340.0900 | M16 | 2 | 18 | 41 |
| 265340.0300 | M5 | 0.8 | 7 | 18 | 265340.1000 | M18 | 2.5 | 18 | 41 |
| 265340.0400 | M6 | 1 | 7 | 18 | 265340.1100 | M20 | 2.5 | 18 | 41 |
| 265340.0500 | M8 | 1.25 | 9 | 21 | 265340.1200 | M22 | 2.5 | 22 | 50 |
| 265340.0600 | M10 | 1.5 | 11 | 27 | 265340.1300 | M24 | 3 | 22 | 50 |
| 265340.0700 | M12 | 1.75 | 14 | 36 | 265340.1500 | M30 | 3.5 | 25 | 60 |

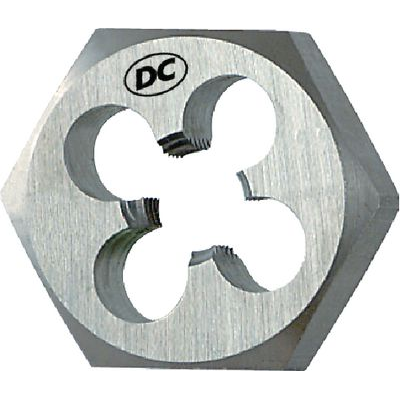

265340 - DC Hexagon die nut
HSS M 6g
HSS, lapped, tolerance range 6g
Power class N
