| Mã đặt hàng | d1 | P | d2 | h1 | S | Mã đặt hàng | d1 | P | d2 | h1 | S |
| mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 265320.0200 | MF3 | 0.35 | 16 | 3 | 4 | 265320.0600 | MF6 | 0.75 | 20 | 7 | 4 |
| 265320.0300 | MF4 | 0.5 | 16 | 4 | 4 | 265320.0800 | MF7 | 0.75 | 25 | 7 | 4 |
| 265320.0400 | MF5 | 0.5 | 20 | 5 | 4 | 265320.1500 | MF12 | 1.5 | 30 | 11 | 6 |
| 265320.0500 | MF6 | 0.5 | 20 | 5 | 4 | 265320.1600 | MF14 | 1 | 35 | 10 | 6 |

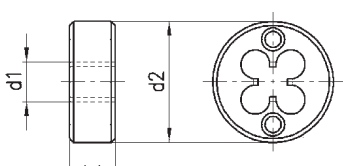

265320 - DC Automatic threading die
HSS MF 6g
HSS, lapped, with two-sided spiral entry for M3 and larger, pitch 0.25 = 6h, tolerance range 6g works standard.
Power class N
Length of taper lead: 1.75 x P.
S: Number of plane holes
