Features
- MC nylon wheels are used, reducing starting resistance.
- The pivoting surface, which is the key part of the swivel fitting, is heat treated to prevent localized wear caused by eccentricity.
- This pressed metal fitting is heavy-duty specification. It is inexpensive and economical and can be used for a variety of purposes.
Purpose
- For general heavy load transport
Specifications in detail
Plate type
fixed type
Allowable load (daN): 646.8
Allowable load (kgf): 660
Wheel diameter D (mm): 200
Wheel width (mm): 63
Mounting height H (mm): 250
Mounting seat A (mm): 151
Mounting seat B (mm): 102
Mounting pitch X (mm): 112
Mounting pitch Y (mm): 63
Mounting hole diameter P (mm): 14
Type: Fixed
Allowable load (N): 6600

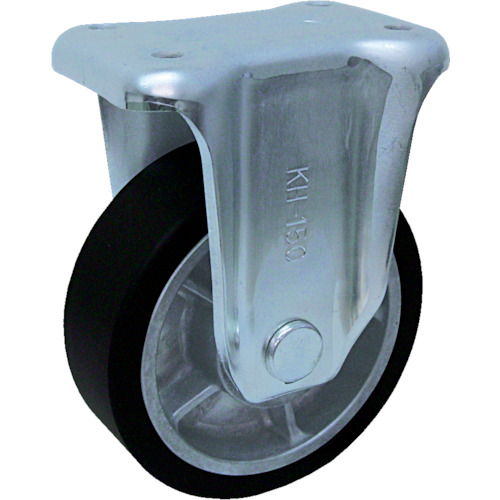

YODONO YRRKH200
