Features
- It has little pressure fluctuation and is ideal for high purity gases.
Purpose
- For analyzers and research.
Specifications in detail
Primary side operating pressure: 2 to 15 MPa
Secondary side operating pressure: 0.2 to 0.6 MPa
Standard flow rate: 100 L/min
Fluid: Helium
Inlet connection: W21-14 (left)
Outlet connection: Rc1/4
Applicable gas

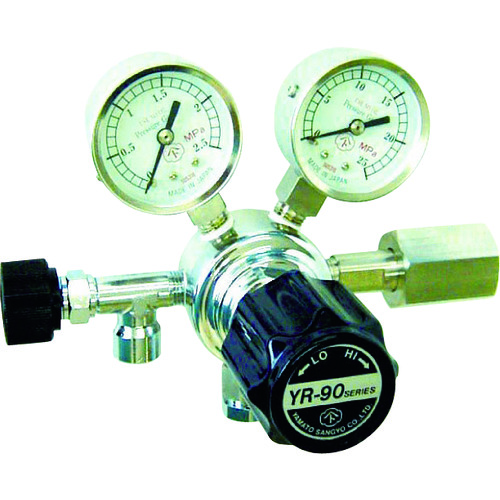

YAMATO YR-90S-R-13N01-2210-HE
