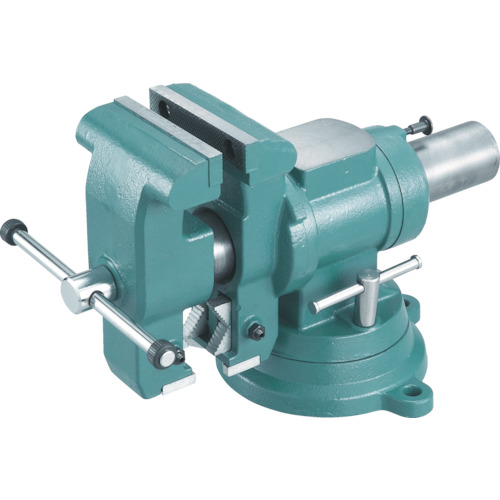

- The heavy-duty round body vise is made of tough cast iron and is highly durable.
- It can rotate 360° up and down, and if equipped with a rotating table, it can rotate 360° horizontally.
- Can be used as a vice for pipes and irregularly shaped objects.
- Comes with anvil function.
- Each nozzle is fully hardened.
Specifications in detail
Clampable pipe diameter: Min 12mm-Max 70mm
Total length (mm): 462
Width(mm):180
Height (mm): 305
Mouth width (mm): 154
Mouth opening (mm): 150
Mouth depth (mm): 90
Mounting hole dimensions (mm): 13
Clamping force (kN): 26
Type: Combination vice
Mounting dimensions (mm) F: 143
Mounting dimensions (mm) G: 202
Mounting dimensions (mm) H: 103
TRUSCO TMB-150
