Features
- Operation is simple; simply align the drum chuck with the drum and lightly operate the hydraulic jack lever to lift it smoothly and it is ready to use.
Applications
- For closed type steel drums of 200L.
Specifications in detail
Hydraulic
3-wheel type
Maximum height when drum is attached: Approx. 1260 mm
Lower claw height: 820-1130 mm
Applicable drum: 200 L (inner diameter 572 mm) Compliant
with JIS Z 1600/1601 Finished
product
Uniform load (kg): 250
Front wheel inner width (mm): 622
Overall width (mm): 800
Overall length (mm): 820
Overall height (mm): 1050
Stroke (mm): 310
Wheel type (front wheel): 200 mm (urethane)
Wheel type (rear wheel): 125 mm (rubber)

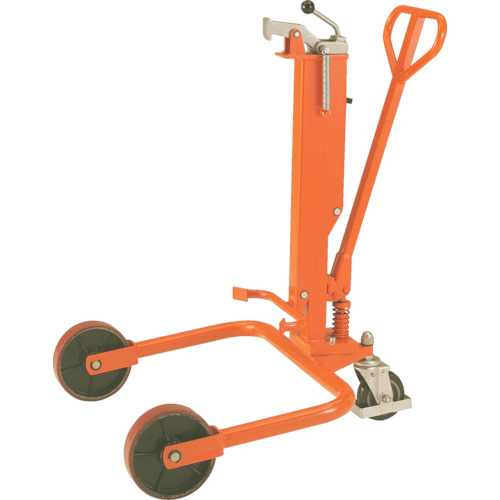

TRUSCO TDT-250
