Features
- It has excellent mechanical strength, fatigue resistance, dimensional stability, oil resistance, and chemical resistance.
Note
- Not available: chemSHERPA, SDS
Specifications in detail
Coolant size: 1/4
Connection thread R1/4 (PT1/4) Part number (P-CL-2C02)
Coolant liner hose (1/4): Part number (CL-2H015)
Valve: Part number (P-CL-2B01)
Tip nozzle diameter: 1/8 Part number (P-CL-2N02)
Operating temperature: -30℃ to +80℃
Operating air pressure (MPa): 0.35
Connection port diameter: PT1/4
Nozzle total length (mm): 330
Compatible fluid: Air Cutting fluid Nozzle
number: 1
Nozzle diameter: 1/8

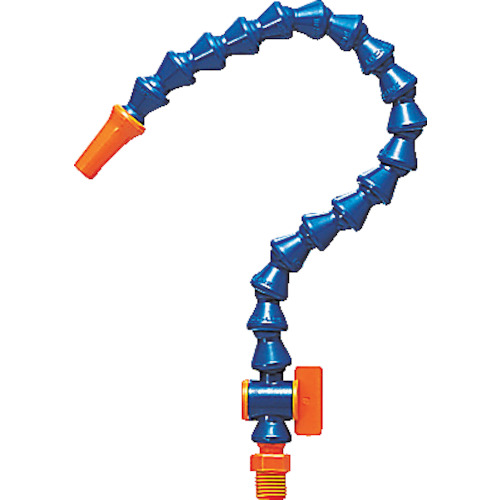

TRUSCO AJ-N1
