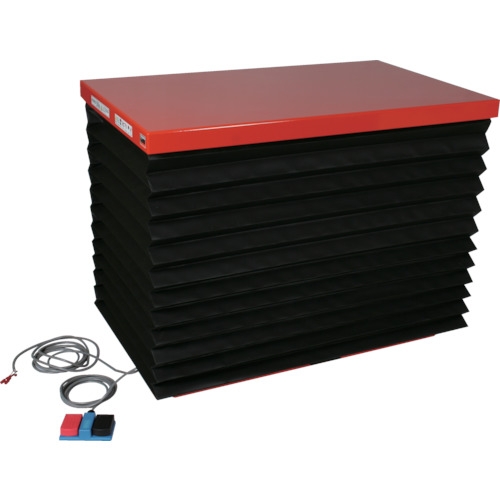

Trusco Nakayama Việt Nam | TRUSCO Super FA Lifter (Electric ball screw type) with bellows MW4644166

Trusco Nakayama Việt Nam | TRUSCO Super FA Lifter (Electric ball screw type) with bellows MW4644166

Thông tin sản phẩm

Operation method: Foot switch (cord length: 2m)
Unit: Built-in type
Maximum frequency of use: 80 times/hour
Quality guarantee period: 1 year
Even load (kg): 300
br>Table height (mm): 155-945
Rising/lowering time (sec) 50Hz: 28/28
Rising/lowering time (sec) 60Hz: 24/24
Power supply (V): Three-phase 200V
Power cord length (m): 4
Motor output (kW): 0.2
Stroke (mm): 790
Lifting method: Electric ball screw type
Table dimensions ( mm) Width x Length: 520 x 1200

Trusco Nakayama HFA-30-0512J-20

Trusco Nakayama Việt Nam | TRUSCO Super FA Lifter (Electric ball screw type) with bellows MW4644166

Thương hiệu: Trusco Nakayama

Liên hệ

Uses a ball screw type dry cylinder with high transmission efficiency. (100,000 continuous uses, 80 up and down movements per hour)
No inertia when stopping the lift, allowing for smooth lifting and stopping.
Maintenance-free with grease lubrication.
Low noise (62dB).
Covered with bellows for excellent safety.

For lifting and lowering luggage or as a workbench.

Trusco Nakayama HFA-30-0512J-20
