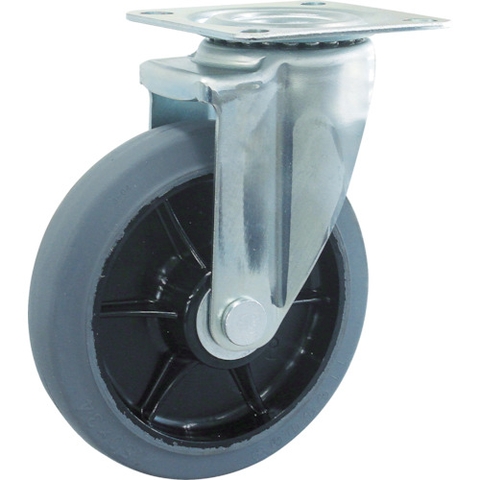

Trusco Nakayama Việt Nam | TRUSCO Plate type caster TYS series (tire markless type) Flexible MW8195383

Thương hiệu: Trusco Nakayama

Liên hệ

Since the wheels are made of elastomer (caster diameter 50-75 mm) and gray rubber (caster diameter 100-150 mm), there will be no running marks on the floor. It's getting harder.
Standard casters for light and medium loads with good running performance and load capacity. These standard size casters are widely used for transportation vehicles, roll box pallets, and other general work.
It has the same elasticity as a rubber car and has excellent running performance even on uneven roads.

For transportation carts, roll box pallets, and other general work.

Trusco Nakayama TYS-125G

Xem thêm

Các thương hiệu bán chạy

TRUSCO

CKD

LOBSTER

HATAYA

HAMMER CASTER

FACOM

PISCO

STEINEL

BAHCO

YAMADA

Thông tin sản phẩm

Plate type
Swivel type
Swivel part: Double bearing included
Wheel diameter D (mm): 125
Type: Swivel type
Allowable load (daN): 150
Allowable load (kgf): 153.0
Wheel width (mm): 34
Mounting height H (mm): 168
Mounting seat A (mm): 102
Mounting seat B (mm): 102
>Mounting pitch X (mm): 75 to 80
Mounting pitch Y (mm): 75 to 80
Mounting hole diameter P (mm): 11.0 -125G
