Operating air pressure: 0.62MPa
Capacity bolt diameter (mm): 22
Socket insertion angle (mm): 12.7
Maximum tightening torque (N・m): Clockwise rotation 732, counterclockwise rotation 922
br>Air consumption ((M3)/min): 0.93
Hose installation port: Rc1/4 (PT1/4)
Exhaust: Downward
Total length (mm): 174
Hammer type: Twin hammer
Maximum tightening torque (N・m) clockwise rotation: 732
Maximum tightening torque (N・m) counterclockwise rotation: 922
Used air hose inner diameter (mm): 10
Used air Pressure (MPa): 0.62
No-load rotation speed (min (-1 power)) Right rotation: 8000
No-load rotation speed (min (-1 power)) Counterclockwise rotation: 8000

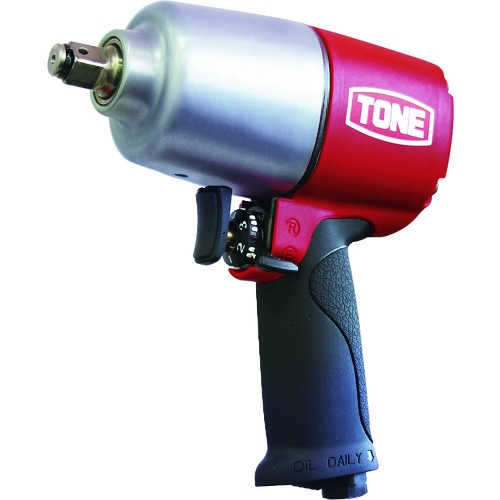

TONE AI4220
