Features

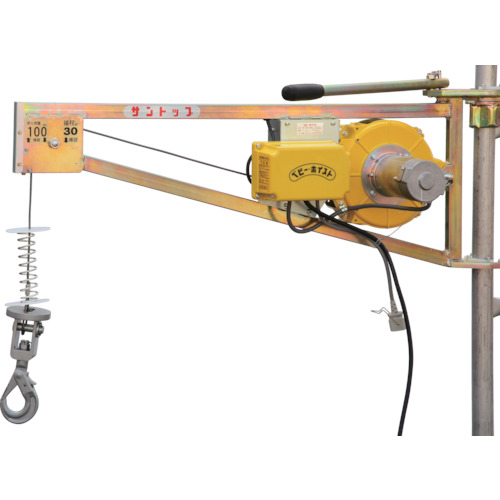

- This is a simple crane equipped with a winch equivalent to a baby hoist.
- Manual rotation allows for safe operation.
- It can be fixed to the scaffolding pipes with a clamp.
Purpose
- Attach it to scaffolding to ensure safety when loading and unloading cargo.
Specifications in detail
2-point push button type
Operation cord (m): 10
Rated load (t): 0.10
Standard lifting height (m): 30
Power supply (V): Single phase 100
Lifting speed (m/min) 50Hz: 25
Lifting speed (m/min) 60Hz: 25
Lifting motor capacity (kW) 50Hz: 0.3
Lifting motor capacity (kW) 60Hz: 0.3
Power cord length (m): 5m
TKK SP-100
