Features
- The ball case is precision press molded, and the slider incorporating the balls provides infinite linear motion in this linear motion system.
Purpose
- For copiers, tool cabinets and vending machines.
Specifications in detail
Vertical clearance 0.03mm or less, horizontal clearance 0.1mm or lessSlider
x 1SealedOperating
temperature
range: -15 to 80°
CSlide rail length (mm): 300Pitch
(mm): 100Dimensions
(mm) G:
50Stroke length (mm): 164

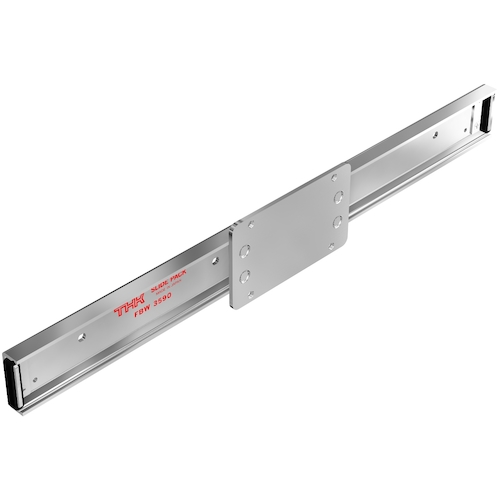

THK FBW50110XRUU-300L
