| Mã đặt hàng | Dải đo | Vật liệu Test |
| 157352.0010 | 20...68 HRC* 14...99 HRB* 19...650 HB* 83...976 HV* 27...99 HSD* |
Đa năng |

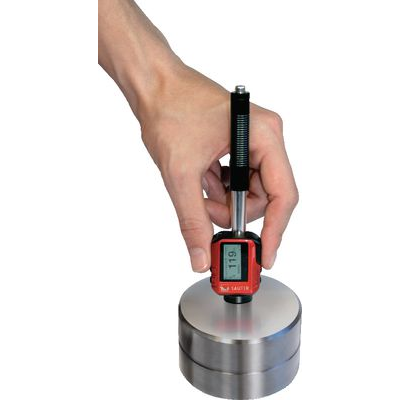

157352 Hardness tester SAUTER HN-D
Hardness tester according to the Leeb method for mobile hardness testing of metals. This compact
deviceallows convenient handling with only one hand.
Selectable devices:
Leeb (HL)
Rockwell (HR B/C)
Vickers (HV)
Brinell HB)
Shore (HSD)
Features:
LCD display with background lighting
Compensation for the test direction (360°)
Internal rebound sensor D
Internal controller memory (500 measurement data)
Data output USB-PC
Accuracy: ±4 HLD
Housing dimensions (L x W x H) / 145 x 35 x 25 mm
Battery operation / power supply internal
Net weight approx. 70g
Package contents:
Delivered in sturdy carrying case incl. power supply and power cable.
Note:
Following a successful measurement (on Leeb device), the desired HRB / HRC / HV / HB / HSD hardness unit can be selected. Unit conversion is performed automatically.
Test piece weight: min. 3 kg on solid base (sensor D)
Thinnest measurable layer: min. 8 mm (sensor D)
PC software for downloading the stored data - 157360.0190
* subject to material hardness and type
