Features
- This pump has liquid-contacting parts made of stainless steel (SUS316) and resin, making it rust-resistant and significantly more durable.
- The vortex structure eliminates blockages.
- It has a built-in motor protection device.
- It is a small and lightweight type that is easy to carry and install.
- The use of new materials means less wear and tear and greater strength.
Purpose
- For sewage drainage treatment.
- For industrial equipment.
- For construction and civil engineering.
Specifications in detail
Power cord length: 5m
Foreign object passage diameter: 15mm or less
Automatic operation type
Discharge volume (L/min): 240
Total head (m): 7.0
Frequency (Hz): 50
Caliber (mm): 50
Power supply (V): Three-phase 200
Current (A): 3.2
Output (kW): 0.75
Overall width (mm): 253
Overall length (mm): 180
Overall height (mm): 416
Foreign object passage diameter (mm): 15
Liquid temperature (℃): 0 to 40
Usable water quality: Clean water, sewage, water containing filth
Power cord length (m): 5
Body height (mm): 416
Body width (mm): 253
Body dimensions (mm) Height: 416

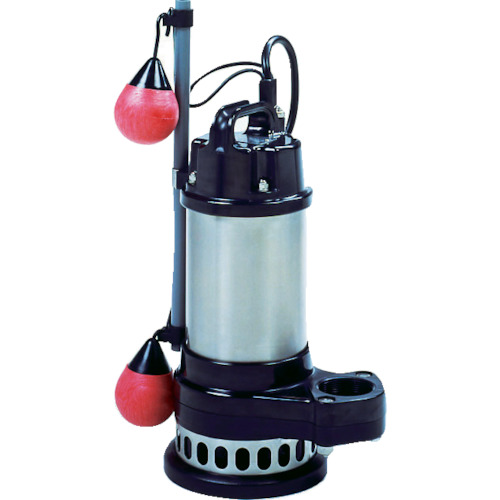

TERADA CXA-750
