Features

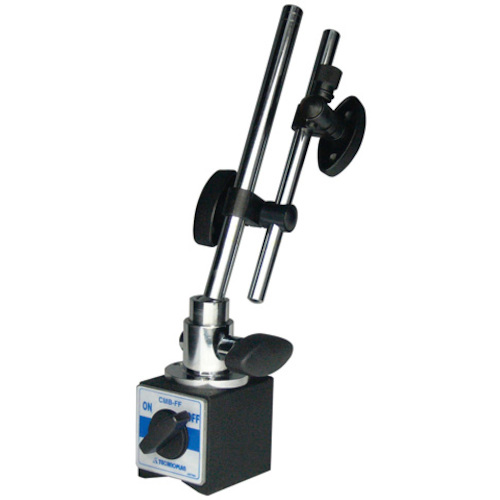

- Holds measuring tools such as dial gauges.
Specifications in detail
Large with fine adjustment
Adhesive force (N): 784
Magnet width (mm): 50
Magnet depth (mm): 58
Magnet height (mm): 55
Main column length (mm): 220
Post diameter (mm): 10
Post length (mm): 165
Main column mounting screw: M8 x 1.25
Measuring instrument mounting hole: 4.5/6.5
Post dimension (mm): 165
Base used: CMB-HB
TECHNOPLAN CMB-FF
