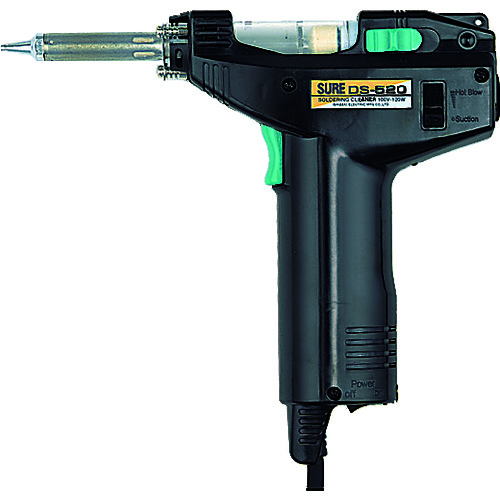

- This is a compact desoldering tool that has the soldering iron, soldering iron temperature control circuit, motor, and diaphragm pump built into a gun-type body and can also remove SMDs.
- The carbon-reinforced body provides thorough protection against static electricity, and of course it is a three-wire type (earthed).
- The suction nozzle and pump are directly connected, so it has a small size but powerful suction power.
Specifications in detail
Motor power: 12W
Ultimate vacuum level: 86.5kPa (650mmHg)
Time to reach maximum pressure: 0.1 seconds
Displacement (OPEN): 15l/min
Heater: 100W
Nozzle standard equipment: Hole diameter φ1.0mm
Power cord length: 1.4m
Power supply (V): AC100
Power consumption (W): 120
Set temperature (℃): 350 to 500
Width(mm):213
Depth (mm): 42
Height (mm): 190
Power cord length (m): 1.4
SURE DS-520
