Features
- Explorer specification models have the following improved performance through the optimization of precision and internal shape, and the adoption of special heat treatment.
- Improved dynamic load capacity: Reduces the effects of misalignment.
- Improved wear resistance: Reduces noise and vibration levels.
- Reduced frictional heat: Significantly extends the service life of bearings.
- These bearings are used to secure the shaft in both axial directions.
Note
- [As this item is ordered from overseas, cancellations and returns are not accepted in principle]
Specifications in detail
NUP type
steel punched cage
Inner ring with flange and flange ring on one side, outer ring with flanges on both sides
Inner ring diameter (mm): 55
Outer ring diameter (mm): 100
Width (mm): 21
Accuracy grade: ISO 492 dimensional accuracy normal tolerance, rotational accuracy grade P6
Seal: Open type
Operating temperature range (℃): -40 to +150

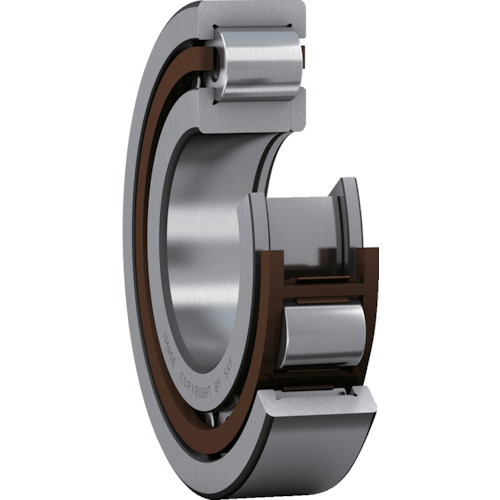

SKF NUP 211 ECJ
