Features
- Explorer specification models have the following improved performance through the optimization of precision and internal shape, and the adoption of special heat treatment.
- Improved dynamic load capacity: Reduces the effects of misalignment.
- Improved wear resistance: Reduces noise and vibration levels.
- Reduced frictional heat: Significantly extends the service life of bearings.
- These bearings are used to secure the shaft in both axial directions.
Specifications in detail
NUP type
Inner ring with flange and flange ring on one side, outer ring with flanges on both sides
Inner ring diameter (mm): 20
Outer ring diameter (mm): 47
Width (mm): 14
Precision grade: ISO 492 dimensional precision normal tolerance, rotational precision P6 grade
Seal: Open type
Operating temperature range (℃): -40 to +120 (when lubricant does not contain EP additive)

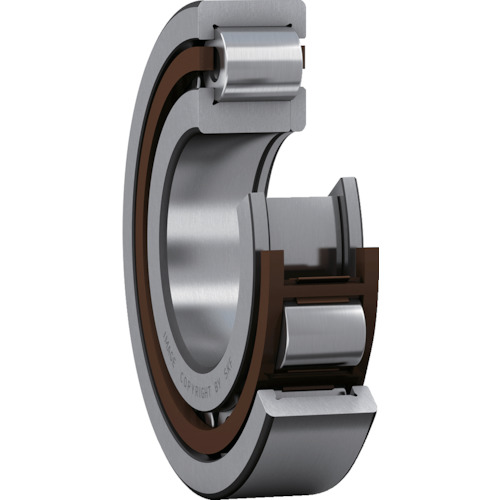

SKF NUP 204 ECP
