Features
- This pump is used when installing medium to large bearings with tapered bores using hydraulic equipment.
- Medium and large SKF bearings with tapered bore are often mounted hydraulically.
- SKF tools and techniques ensure that bearings are mounted in a controlled and precise manner, contributing to longer bearing life.
- The technique can also be applied to other annular components such as gears and railway wheels.
- SKF hydraulic tools and techniques enable the safe and controlled removal of bearings and similar components on cylindrical or tapered shafts.
Purpose
- For SKF OK coupling hydraulic chambers.
- For all sizes of SKF hydraulic nuts.
- For oil injection applications requiring pressures up to 50MPa.
- For installation using the SKF Drive-Up method.
Specifications in detail
Large oil tank with a capacity of 2700 cm3
Equipped with an overpressure valve and a connection for a pressure gauge Packaged in a
sturdy protective case
1 liter of spare installation oil
included Digital pressure gauge required for installation with the drive-up method included
Effective oil volume (L): 2.7
Discharge volume per operation (ml) high pressure: 3.5
Maximum operating pressure (MPa) high pressure: 50
Discharge port diameter: G1/4
Maximum operating force (N): 310

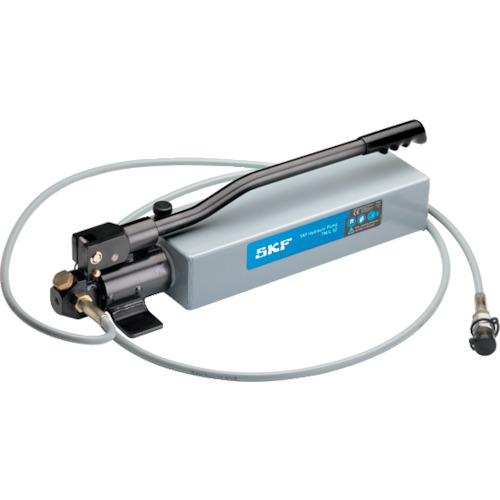

SKF TMJL 50DU
