Features
- This pump is used when installing medium to large bearings with tapered bores using hydraulic equipment.
- Medium and large SKF bearings with tapered bore are often mounted hydraulically.
- SKF tools and techniques ensure that bearings are mounted in a controlled and precise manner, contributing to longer bearing life.
- The technique can also be applied to other annular components such as gears and railway wheels.
- SKF hydraulic tools and techniques enable the safe and controlled removal of bearings and similar components on cylindrical or tapered shafts.
Purpose
- For SKF hydraulic nuts up to HMV 92E.
- For mounting bearings or components where a maximum pressure of 100MPa is required.
- For oil injection applications to remove rolling bearings.
- For use in conjunction with SKF hydraulically assisted pullers TMHP series.
- For installation using the SKF Drive-Up method.
Specifications in detail
Oil tank capacity: 800 cm3
Digital pressure gauge required for installation using the drive-up method included
Comes in a sturdy protective case
1 liter of spare installation hydraulic oil included
Effective oil volume (L): 0.8
Discharge volume per operation (ml) high pressure: 1
Maximum operating pressure (MPa) high pressure: 100
Discharge port diameter: G1/4
Maximum operating force (N): 320

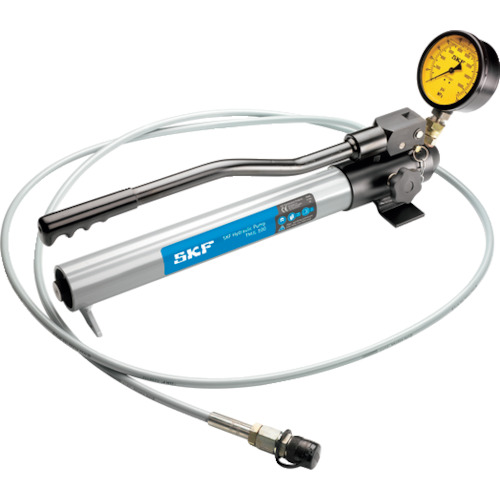

SKF TMJL 100DU
