Features

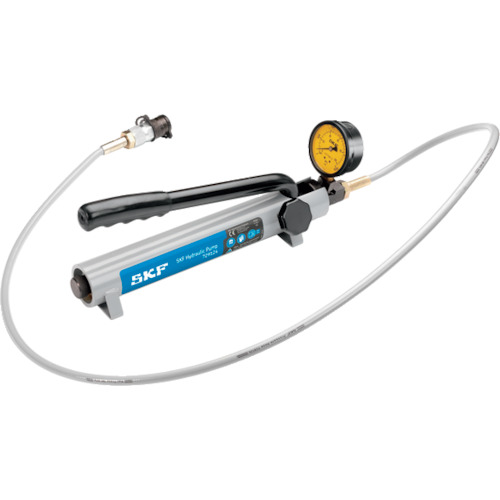

- This pump is used when installing medium to large bearings with tapered bores using hydraulic equipment.
- Medium and large SKF bearings with tapered bore are often mounted hydraulically.
- SKF tools and techniques ensure that bearings are mounted in a controlled and precise manner, contributing to longer bearing life.
- The technique can also be applied to other annular components such as gears and railway wheels.
- SKF hydraulic tools and techniques enable the safe and controlled removal of bearings and similar components on cylindrical or tapered shafts.
Purpose
- For SKF hydraulic nuts below HMV 55E.
- For mounting bearings or components where a maximum pressure of 100MPa is required.
- For oil injection applications to remove rolling bearings.
Specifications in detail
Oil tank capacity: 250 cm3
With pressure gauge
Comes in sturdy protective case
Spare installation hydraulic oil 1 liter included
Effective oil volume (L): 0.25
Discharge volume per operation (ml) High pressure: 0.5
Maximum operating pressure (MPa) High pressure: 100
Discharge port diameter: G1/4
Maximum operating force (N): 300
SKF 729124
