Features
- This pump is used when installing medium to large bearings with tapered bores using hydraulic equipment.
- Medium and large SKF bearings with tapered bore are often mounted hydraulically.
- SKF tools and techniques ensure that bearings are mounted in a controlled and precise manner, contributing to longer bearing life.
- The technique can also be applied to other annular components such as gears and railway wheels.
- SKF hydraulic tools and techniques enable the safe and controlled removal of bearings and similar components on cylindrical or tapered shafts.
Purpose
- For mounting bearings or components where pressures up to 150MPa are required.
- For installing SKF Supergrip bolts.
- For oil injection applications with a maximum pressure of 150 MPa.
- For all sizes of SKF hydraulic nuts.
Specifications in detail
Oil tank capacity: 2550 cm3
Two-stage pressure pump
with pressure gauge
Comes in sturdy protective case
Spare installation hydraulic oil (1 liter) included
Effective oil volume (L): 2.4
Discharge volume per operation (ml) High pressure: 1
Discharge volume per operation (ml) Low pressure: 20
Maximum operating pressure (MPa) High pressure: 150
Maximum operating pressure (MPa) Low pressure: 2.5
Discharge port diameter: G1/4
Maximum operating force (N): 370

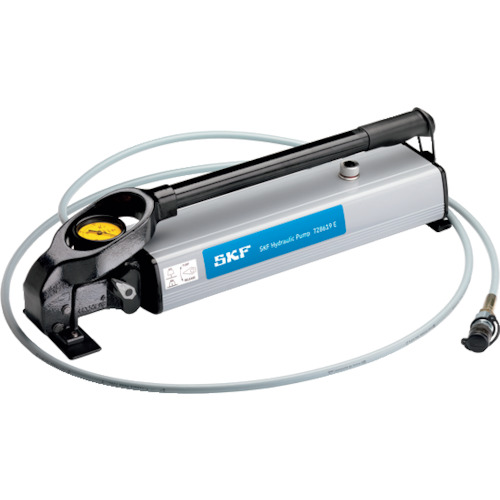

SKF 728619 E
