Features

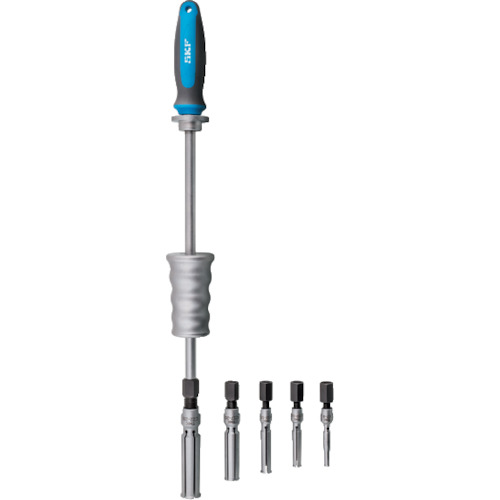

- This is a puller for removing outer ring interference-fit bearings from housings.
- It includes a variety of extractors optimized for strength and durability to accommodate a wide range of bearing bore sizes.
- Capable of delivering high impact forces, the slide hammer is ergonomically designed to ensure user safety.
- They feature spring loaded extractors (patented SKF design) for quick and easy removal, or collet style extractors for applications where space behind the bearing is limited.
Purpose
- For removing the shaft and pulling out the bearing while it is still in the housing.
- For applications where space behind the bearing is limited.
Specifications in detail
Expandable collet design made of high strength material
Designed especially for applications where gripping space behind the bearing is limited
Slide hammer type
Pull-out suitable bearing outer diameter (mm): ^
Pull-out suitable bearing inner diameter (mm): 7-8, 10-12 , 12-15
, 17-20, 22-28 Jaw reach (mm): 54, 56, 62, 70, 90
Jaw tip thickness (mm): 3, 3, 4.0, 5.3, 6.7
Set contents (pieces): 5
Push screw hex size (mm): Slide hammer type
^
SKF TMIC 7-28
