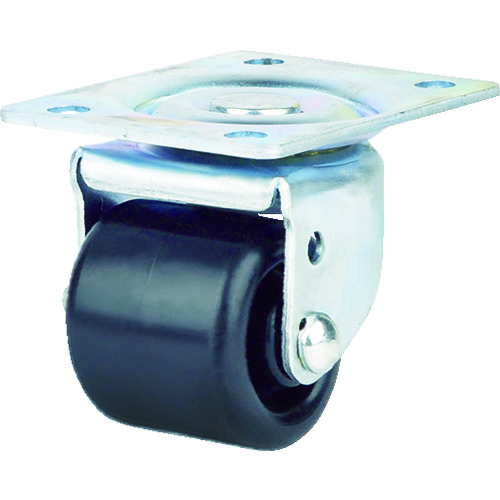

Features
- A highly durable, low-profile industrial caster.
- This is a screw-tightened type that can also be used as a stopper.
Purpose
- Used for low-profile equipment wheels.
Specifications in detail
Plate type,
swivel
bearing,
low-floor type
, allowable load (daN): 88
, allowable load (kgf): 90,
wheel diameter D (mm): 50,
wheel width (mm): 43
, mounting height H (mm): 70,
mounting seat A (mm): 95,
mounting seat B (mm): 70,
mounting pitch X (mm): 75,
mounting pitch Y (mm): 45,
mounting hole diameter P (mm): 6
, type: swivel
SAMSON TP8020-01-HDP
