Features
- Depending on the model, the tube exit angle can be changed after installation.
- Depending on the conditions, it may be possible to allow water to flow.
- We have a wide range of models available to accommodate any type of pneumatic piping.
Specifications in detail
Operating temperature range: 0 to 60°C (no freezing)
Maximum operating pressure: 1MPa
Vacuum pressure: -100kPa
Applicable tube outer diameter D (mm): 12
Connection port size: R3/8
Hexagonal diagonal (mm): 17
Maximum operating pressure (MPa): 1
Fluid used: Air, water (conditions apply)
Operating temperature range (°C): 0 to 60 (no freezing)

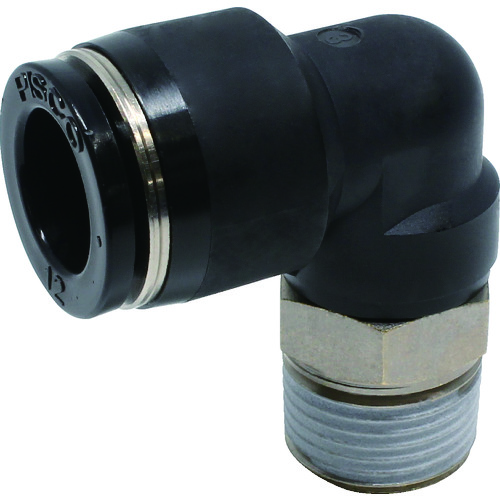

PISCO PL12-03
