Features
- Ideal for compact piping.
- It is also possible to drain water.
Note
- If you need to ensure the pull-out strength of the JIS standard, please use the genuine insert ring. (JIS B8381-1)
- When using water as the fluid, be sure to observe the following conditions. 1. Ordinary tap water can be used. Please contact us if you wish to use other types of water. 2. When using water, make sure to keep the surge pressure below the maximum operating pressure. 3. When connecting to a one-touch fitting and using water, be sure to use an insert ring. This may cause the tube to come loose.
Specifications in detail
Maximum operating pressure: 0.6MPa (at 20℃ 65%RH)
Vacuum pressure: -100kPa
Operating temperature range: -15 to 60℃ (no freezing)
Color: Clear blue
Outer diameter (mm): 6
Inner diameter (mm): 4
Minimum bending radius (mm): 13
Total length (m): 100
Operating temperature range (℃): -15 to 60 (no freezing)
Fluid used: Air, water

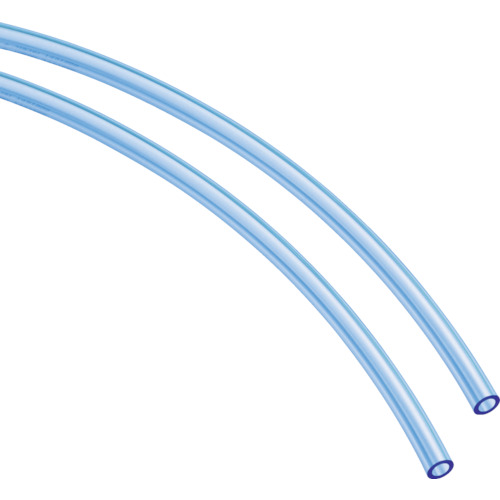

PISCO UC0640-100-CB
