Features
- It has excellent sound deadening effect.
- It has a long life.
Specifications in detail
Operating pressure: 0.9MPa
Operating temperature range: 0 to 60°C (no freezing)
Volume reduction (dB): 20
Effective cross-sectional area ((MM2)): 10.5
Total length (mm): 34.6
Operating pressure (MPa): 0.9
Applicable tube outer diameter D (mm): 6
Connection port size (mm): 6
Operating temperature (°C): 0 to 60 (no freezing)
Fluid used: Air
Outer diameter (mm): 15.5

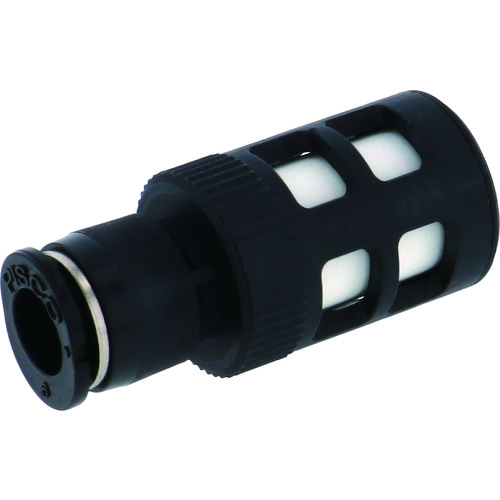

PISCO ST6
