Features
- It uses a 4-brush motor that is strong against high-load work.
- The motor, switch, control device, etc. are compliant with the dustproof and water-resistant standard IP56. (*This is the state when the main unit and battery are installed. Not each unit separately.)
Applications
- Screwing and drilling: construction carpentry, interior work, electrical work, plumbing, sash work, sheet metal work.
Specifications in detail
Vibration drilling capacity: High-speed mode: Concrete block (φ6.5×40mm) approx. 200 holes
Drilling capacity: High-speed mode: Wooding core drill (φ65×Ceramic siding material 16mm+Plywood 12mm) approx. 50 holes
Fastening capacity: High-speed mode: Wood screws, American pine (φ6×60mm) approx. 370 screws
Chuck capacity: 1.5-13mm
18-stage clutch,
hand tightening function,
with brake,
LED light,
charging time: 48 minutes (practical charging), 60 minutes (full charging),
no-load speed (min-1) high speed: 160-1650,
no-load speed (min-1) low speed: 50-430,
maximum tightening torque (N・m): 40,
maximum tightening torque (N・m) high speed: 13.9,
maximum tightening torque (N・m) low speed: 40,
number of impacts (min-1) high speed: 2880-29700,
number of impacts (min-1) low speed: 900-7740,
number of impacts (bpm): 900-29700
, color: gray,
total length (mm): 235,
height (mm): 197,
width (mm): 63

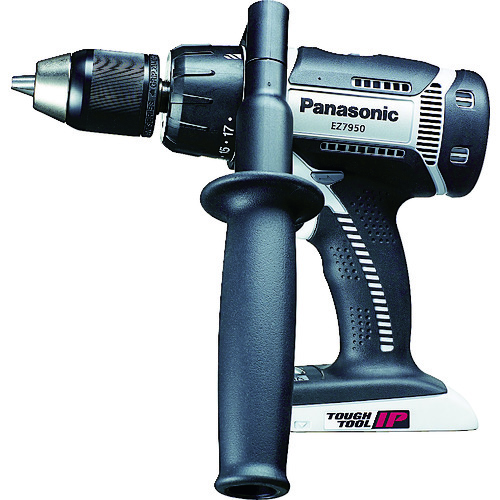

PANASONIC EZ7950X-H
