Features
- Approximately 90 holes can be made with a φ160mm core drill.
- The powerful vibration makes drilling holes in mortar quick and easy.
- This one machine can be used for woodworking, metalworking, drilling, and screwing.
- Powerful vibration with fixed cam system.
Applications
- Mortar drilling work.
- Screw tightening: general construction, interior design, electrical work, plumbing, sash work, sheet metal work.
Specifications in detail
Drilling capacity: Low speed mode: Metal drill/SPC (φ13×16mm, with φ6.5 pilot hole for metalworking) approx. 260 holes, High speed mode: Mortar (φ6.5×depth 30mm) approx. 280 holes
Screw tightening capacity: Low speed mode Mortar no plug screws (φ6×45mm φ5.7×55mm pilot hole) approx. 950 pieces
Chuck capacity: 1.5-13mm
Fixed cam type
2-stage speed switching 18-stage clutch
2-stage speed switching
18-stage clutch
with LED light Charging time: Approx. 42 minutes (practical charging), Approx. 55 minutes (full charging) IP56 tested product with brake and hand tightening function No-load speed (min-1) high speed: 350-1500 No-load speed (min-1) low speed: 100-400 Maximum tightening torque (N・m): 40 Maximum tightening torque (N・m) high speed: 15 Maximum tightening torque (N・m) low speed: 42 Impacts (min-1) high speed: 6300-27000 Impacts (min-1) low speed: 1800-7200 Color: Black Total length (mm): 245 Height (mm): 195 Width (mm): 75
with LED light
Charging time: Approx. 42 minutes (practical charging), Approx. 55 minutes (full charging)
IP56 tested product
with brake and hand tightening function
No-load speed (min-1) high speed: 350-1500
No-load speed (min-1) low speed: 100-400
Maximum tightening torque (N・m): 40
Maximum tightening torque (N・m) high speed: 15
Maximum tightening torque (N・m) low speed: 42
Impacts (min-1) high speed: 6300-27000
Impacts (min-1) low speed: 1800-7200
Color: Black
Total length (mm): 245
Height (mm): 195
Width (mm): 75

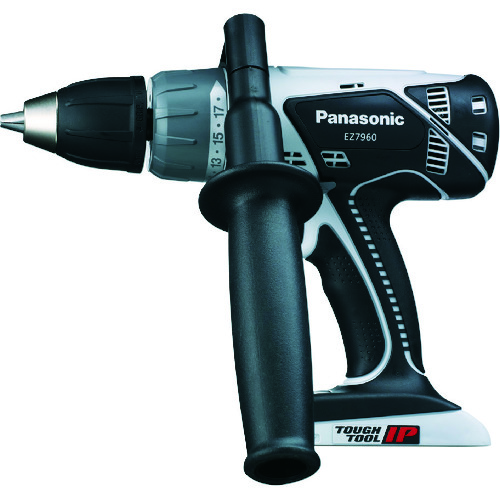

PANASONIC EZ7960X-B
