- It is small, light and easy to use, fitting in the palm of your hand.
- Equipped with an LED light, it is useful in dark places.
- Equipped with a forward/reverse independent push switch.
- Equipped with a charging status indicator lamp (charging: red, charging complete: green).
- Equipped with overcharge, overdischarge, and overcurrent protection circuits to protect the battery and motor.
- For tightening and loosening small screws.
Specifications in detail
Lithium-ion battery 3.7V 850mAh (built-in battery)
USB rechargeable (USB Type A-microUSB Type B)
Screw tightening range: Small screws M3 (when tightening electrically), small screws M6 (when tightening by hand)
Total length: 128mm
6.35 hexagonal shaft, one-touch bit lock system (step dimensions 9, 11.5, 13 mm)
USB terminal 1 terminal microUSB TypeB DC5V
Charging time: Approx. 45 minutes (when using our EZ37C4 or EZ37C5), Approx. 35 minutes (when using a commercially available USB charger at 5V 1A), Approx. 25 minutes (when using a commercially available USB charger at 5V 2A)
Maximum tightening torque (N・m): 1
Color: Black
No-load speed (min(-1)): 230
Voltage(V):3.7
Tightening torque: 1N･m (rigid body tightening torque when using electric power) 8N･m (maximum durability torque when tightening by hand)
Work guide (without spring washers): Approx. 620 pieces (M3 x 5 mm), Approx. 540 pieces (M5 x 10 mm)
No-load speed (rpm): 230

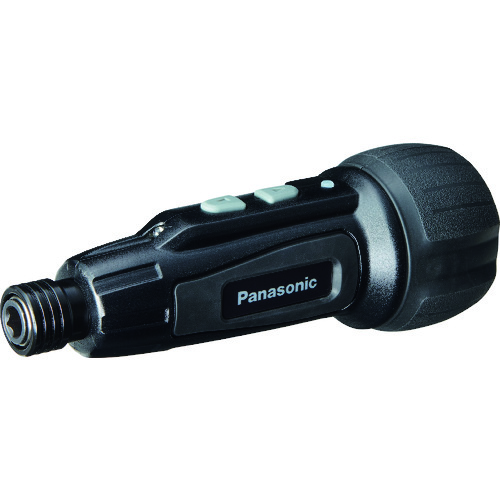

PANASONIC EZ7412S-B
