- It is equipped with a "dual circuit" that determines whether the installed battery is 18V or 14.4V and controls the tool to use with the optimal current and voltage.
- The C-spring (retainer ring) provides temporary support when replacing the socket, making replacement easy.
Specifications in detail
Impact: 3-step switching
LED Light
With brake
Chuck: 12.7mm socket, C spring (retainer ring) pin type
Tightening capacity: Bolts (M16 x 25 mm t10 mm normal bolts) approx. 730 pieces, bolts (M12 x 25 mm t10 mm high strength bolts) approx. 320 pieces
Maximum tightening torque (N・m): 200
No-load speed (min(-1)): 0 to 2300
No-load speed (min(-1)): 0 to 1400
No-load RPM (min(-1)): 0 to 1000
Number of hits (min(-1)): 0 to 3500
Number of hits (min(-1)): 0 to 2800
Number of hits (min(-1)): 0 to 2000
Charging time: 40 minutes (practical charging), 60 minutes (full charging)
Battery pack capacity (Ah): 5.0
Included battery pack: EZ9L48 x 2

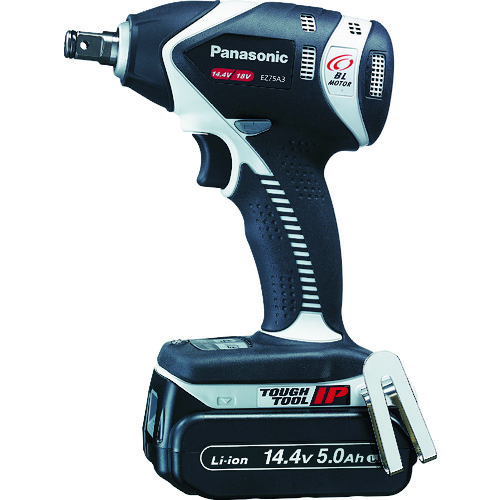

PANASONIC EZ75A3LJ2F-H
