Features
- Equipped with a tap mode that is ideal for tap setting.
- Tap mode can be activated by pressing and holding the RPM switch.
- Each time the trigger is pulled, forward and reverse rotation is automatically switched.
- No need to operate the forward/reverse switch lever.
Applications
- For tightening small screws.
- For drilling holes in wood, metal, and mortar.
Specifications in detail
Chuck capacity: 1.5 to 13 mm
Clutch operating torque: 18-step switching (approx. 1.0 to 4.4 N･m in approx. 0.2 N･m increments)
Screw tightening capacity (mm): up to 8 (wood screws), up to 6 (textile screws), up to M5 (small screws)
Vibration drill mode (mm): up to 13 (mortar, tile, brick, block)
Drill mode (mm): up to 80 (ceramic siding), up to 33 (metalwork), up to 38 (woodwork)
Practical use Charging time: 40 minutes
Full charging time: 60 minutes
No-load speed (min-1) High speed: 70 to 1800
No-load speed (min-1) Low speed: 20 to 530
Maximum tightening torque (N・m) High speed: 12
Maximum tightening torque (N・m) Low speed: 32
Impacts (min-1) High speed: 1260 to 32300
Impacts (min-1) Low speed: 400 to 9500
Low speed rigid body torque (N･m): 50

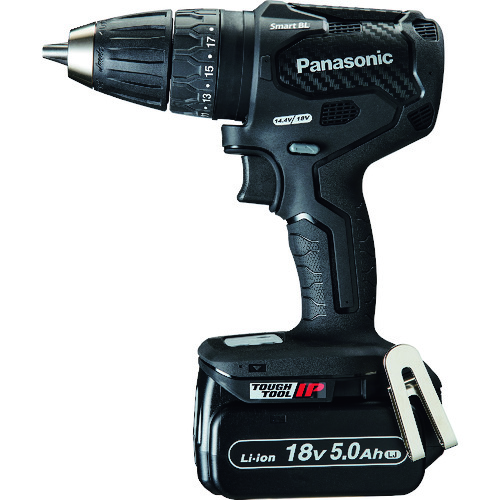

PANASONIC EZ79A3LJ2G-B
