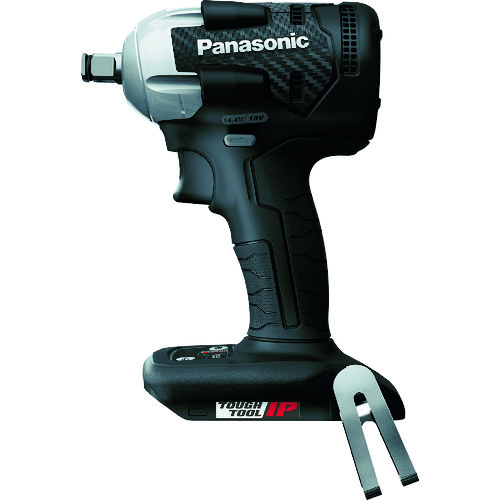

- This is a compact impact wrench with a total length of 143 mm.
- Equipped with a C-spring that can temporarily hold the socket in place, socket replacement can be done smoothly.
- For final tightening of normal bolts up to M16, temporary tightening of high strength bolts up to M16 (only when using 18V), etc.
Specifications in detail
Impact: 3-step switching
Chuck: 12.7mm socket, C spring (retainer ring) pin type
Maximum tightening torque (N・m): 280 (18V) / 230 (14.4V)
No-load speed (min(-1)): 0-2500 (18V) / 0-2300 (14.4V)
Insertion angle (mm): 12.7
No-load speed (min(-1)): 0 to 2500, 2300
No-load speed (min(-1)): 0 to 1500
No-load RPM (min(-1)): 0 to 1000
Number of hits (min(-1)): 0 to 3600, 3400
Number of hits (min(-1)): 0 to 2900
Number of hits (min(-1)): 0 to 1900
Socket drive size (mm): 12.7
PANASONIC EZ75A8X-B
